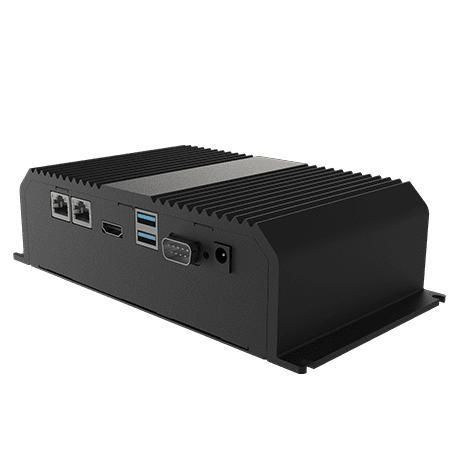

Expansion PC IE32SB3-101

EDGEboxembedded

Overview
The Winmate IE32SB3-101 is an industrial embedded Box PC powered by an Intel® Celeron® N6211 (Elkhart Lake). Designed for industrial automation, IIoT/Edge computing, robotics and mission-critical embedded applications, it features a fanless metal chassis, compact footprint and multiple expansion options for reliable field deployment.

Key Features

• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x DDR4 SO-DIMM 3200 MHz, up to 16 GB
• 2 x 2.5G LAN (Intel® Ethernet Controller)
• 2 x USB 3.2 Gen2x1 (Type-A)
• Up to 3 x COM ports (configurable RS232/422/485)
• Fanless cooling, metal enclosure
• Optional HDMI/CVBS capture card; M.2 expansion for Wi‑Fi and SSD

System Specification

• CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; optional 8 GB / 16 GB; 1 x DDR4 SO‑DIMM slot, 3200 MHz, max. 16 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; M.2 2242 Key B (SATA)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Ubuntu 22.04
• Wireless: optional via M.2 2230 Key E slot (Wi‑Fi/Bluetooth)

Mechanical

• Dimensions: 205 x 110 x 55 mm
• Weight: 1.1 kg
• Enclosure: metal housing
• Mounting: desk mount (options for DIN-rail, VESA, wall mount referenced)

Environment

• Operating temperature: 0°C to 55°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non‑condensing

Certifications

• CE
• FCC

I/O and Expansion

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); optional 1–2 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: optional HDMI 2.0 (additional DP/HDMI options for dual displays referenced)
• Expansion: 1 x M.2 2242 Key B (SSD); 1 x M.2 2230 Key E (Wi‑Fi); optional capture card for HDMI/CVBS
• Power: 12V DC (2.5φ DC jack)

Accessories

• 100–240V AC to DC adapter
• Power cord
• Quick Start Guide
• 6 x M4*8 desk mount screws

Use Cases
Recommended for industrial automation, factory data collection and protocol conversion, robotics, smart retail, surveillance and multimedia capture (with optional capture card), and IIoT/Edge computing deployments.

Technical specifications

• Model: IE32SB3-101
• Brand: Winmate
• CPU: Intel® Celeron® N6211
• Memory: 4 GB default, expandable to 16 GB
• Storage options: 128 GB default, up to 2 TB
• Networking: 2 x Intel® 2.5G LAN
• Dimensions / Weight: 205 x 110 x 55 mm / 1.1 kg
