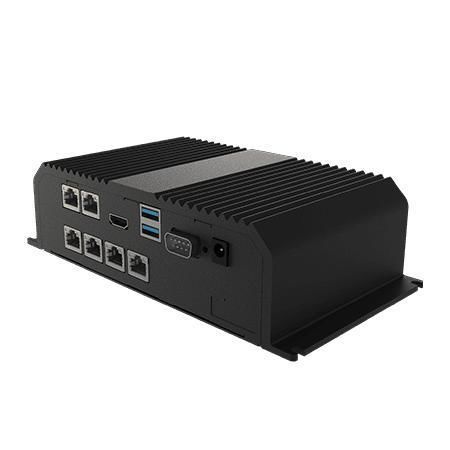

Box PC IE32SB3-101-6L

embeddedIntel® Celeron®Intel® Celeron® N6210

Overview
Embedded PC for Industrial IoT, Robotics, and Automation. Powered by an Intel® processor, this compact fanless box PC provides stable performance for multi-tasking in rigorous industrial conditions. Supports Windows® IoT Enterprise and other OS options for factory automation, robotics, smart retail, and various IIoT/Industry 4.0 applications.

Key Features

• Intel® Celeron® Elkhart Lake N6211 Processor
• 1 x DDR4 SO-DIMM 3200 MHz, up to 16GB
• 2 x USB 3.2 Gen2x1 (Type-A)
• 6 x Giga LAN (2 x 2.5GbE + 4 x 1GbE)
• Elegant and slim mechanical design
• Fanless cooling system
• Optional capture card for HDMI input or CVBS input

Product Highlights
Fanless, silent heat dissipation design reduces dust ingress and maintenance. Rich I/O for industrial communication including multi-LAN support (six GbE ports) to enable network segmentation and industrial connectivity. Optional video capture and HDMI output enable monitoring, vision, and integration of legacy video sources.

System Specification

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz). Optionally N6210 on some configurations.
• Memory: 4 GB (default). Optional 8 GB or 16 GB. 1 x DDR4 SO-DIMM 3200 MHz.
• Storage: 128 GB SSD (default). Optional 256 GB, 512 GB, 1 TB, 2 TB. M.2 2242 B-key slot for SSD.
• Ethernet controller: 2 x Intel® Ethernet Controller.
• Security: TPM 2.0.
• Operating System (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04.
• WLAN / BT: Support available as optional features.

Mechanical

• Dimension: 205 x 110 x 55 mm
• Weight: 1.3 kg
• Mounting: Desk mount
• Enclosure: Metal housing
• Cooling system: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 55°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

I/O Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN (RJ45) + 4 x Giga LAN (RJ45)
• Video: HDMI 2.0 (optional)
• Expansion: 1 x M.2 2242 Key B slot for SSD; 1 x optional capture card for HDMI-in or CVBS-in
• Power input: 1 x 12V DC, 2.5φ DC jack

Control

• Button: 1 x Power Button

Accessories

• 1 x 100–240V AC to DC Adapter
• 1 x Power Cord
• 1 x Quick Start Guide
• 6 x M4*8 desk mount screws

Power

• Power rating: 12V DC

Use Cases
Designed for industrial automation, embedded systems, mission-critical edge deployments, machine vision/monitoring with optional capture card, robotics, and IIoT where reliable multi-I/O and multi-LAN connectivity are required.

Technical characteristics

• Model: IE32SB3-101-6L
• CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 1 x DDR4 SO-DIMM 3200 MHz, 4 GB default, up to 16 GB
• Storage: M.2 2242 B-key SSD (128 GB default; up to 2 TB optional)
• LAN: 6 total (2 x 2.5GbE + 4 x 1GbE)
• USB: 2 x USB 3.2 Gen2x1 Type-A
• Serial: 1 x RS232/422/485
• Video: HDMI 2.0 optional; optional HDMI/CVBS capture card
• Dimensions / Weight: 205 x 110 x 55 mm / 1.3 kg
• Enclosure: Metal housing; fanless cooling
• Operating Temp / Humidity: 0°C to 55°C / 10%–90% RH non-condensing
• Certifications: CE, FCC
• Power Input: 12V DC (2.5φ DC jack)
