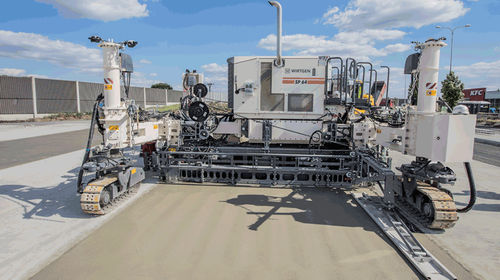

Inset slipform paver SP 64i

Overview
The SP 64i inset slipform paver is a fully modular 4-track machine for precise concrete paving in road and airport construction. It operates on paving widths from 2.0 m to 7.5 m and paving thicknesses up to 450 mm. Modular design, hydraulic swing arms and an electronic steering and control system ensure high adaptability and accurate concrete placement.

Key features

• Fully modular machine concept for fast reconfiguration and extension.
• Four crawler units (4-track concept) for stable directional control.
• Paving width: 2,000–7,500 mm (configuration dependent).
• Maximum paving thickness: up to 450 mm.
• Electronic steering and control for precise handling of crawler units.
• Integrated electric or hydraulic vibrators for homogeneous compaction.
• Optional integrated devices: self-loading dowel inserter, anchor inserter, side/central tie bar systems.
• ECO mode and telematics support; 3D interface compatibility.

Inset paving process
Concrete is deposited directly in front of the paver or fed from the side via conveyor or side feeder. A spreading auger or spreading plough distributes concrete evenly over the full paving width. Integrated vibrators provide homogeneous compaction while the inset mould shapes the slab to the specified width and thickness as the paver advances. Optional dowel or anchor inserters place reinforcement elements parallel to the travel direction; central or side tie bars can be inserted transversely. An oscillating beam and smoothing equipment perform surface finishing, followed by a super-smoother for final texture.

Options & additional functions

• Self-loading dowel inserter and anchor setter (optional).
• Transverse and longitudinal screeds for surface treatment.
• Hydraulic or electric vibrator drives; multiple vibrator connection options.
• Compact transport concept with reduced conversion effort.
• Operator station with ergonomic layout and intuitive controls.

Technical data

• Engine power: 180 kW (245 PS).
• Emission stage: EU Stage 5 / US EPA Tier 4f.
• Number of crawler units: 4.
• Paving width: 2,000–7,500 mm.
• Maximum paving thickness: up to 450 mm.
• Working speed (smoothing): approx. 7 m/min.
• Installation travel speed: 0–6 m/min; transport speed up to 23.5 m/min.
• Displacement: 6.0 l.
• Operating weight: approx. 17,000–45,000 kg (depending on configuration).
• Mechanical height adjustment: 420 mm; hydraulic adjustment: 1,100 mm.
