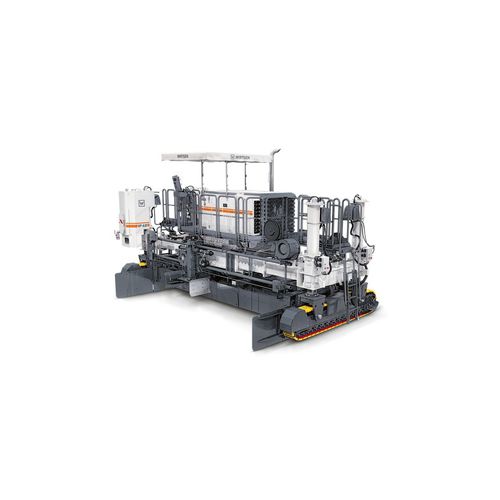

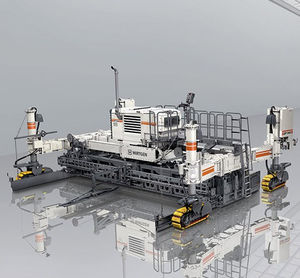

Inset slipform paver SP 62i

Overview

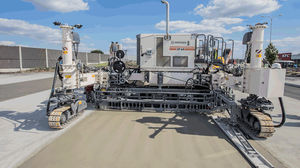

The inset slipform paver SP 62 is a compact, fully modular machine designed for concrete paving between tracks. It covers paving widths from 3.5 m to 7.5 m with a paving thickness up to 450 mm and is suitable for road, industrial and heavy-duty concrete works.

Key specifications

• 2-track slipform concept for inset (between-track) paving
• Paving width: 3.5–7.5 m
• Maximum paving thickness: 450 mm
• Fully modular design for configuration and expansion
• Low ground pressure for demanding site conditions

Modular design and transport
The modular construction allows quick changeover, simple reconfiguration and easy expansion on site. Components are designed for fast assembly/disassembly to enable efficient transport and high machine availability.

Steering and control
The machine features an intelligent electronic steering and control concept with sensitive track steering on the two-track configuration, providing precise alignment and consistent surface quality during paving.

Operation and material handling

• Concrete feeding: front feed or side feed via belt conveyor or side placer
• Distribution: plough or auger spreader for even material distribution
• Compaction: integrated electric or hydraulic vibrators
• Optional modules: dowel inserter module, central or side anchors

Applications and options
Suitable for highways, airport pavements, industrial slabs and other large-scale concrete surfaces. Available options and accessories allow adaptation to specific project requirements and improve on-site productivity.
