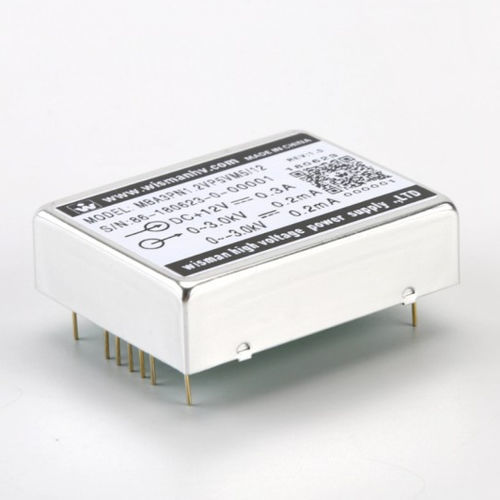

Printed circuit board power supply MBA

DC/DCdual-outputwith short-circuit protection

Wisman's MBA module high-voltage power supply is a special ultra-low noise, high stability, and miniaturized module for photomultiplier tubes, mass spectrometers, and electron microscopes. The price is competitive. Wisman'a MBA series of 1 to 4 micro-modules that provide output voltages ranging from ±50V to ±3KV.MBA modules are compact,six-sided shielded modules with high stability and low temperature coefficient. All models are equipped with an external potentiometer or an external voltage for monitoring. APPLICATIONS APD(Avalanche Photo Diode) Electron Multiplier Hibrid Photo Detector Bar Code Scanners Bomb Detectors Cellular Electrophoresis Detectors E-chuck(Electrostatic Chuck) ESD(Electrostatic Discharge Testing) Flow cytometry FPD(Flat Panel Ditector) Gamma Cameras Geiger Counter GM Tubes(Geiger Mueller Tubes) Hi Pot Testing Immunocytology Ion Mobility Spectrometry(IMS) Ionizers Leak Detector PMT,MM,radiation counter Electron Beam/Ion Beam Mass spectrometry PhotoMultiplier Tubes Scintillators Electron Guns Ion Guns Nuclear Instruments Electrostatic lenses Spectroscopy Microchannel Plates SPECIFICATIONS Input Voltage: Input Current: Double circuits output voltage range : Double circuits: below models can be optional line regulation: 0.001% TYP load regulation: 0.01% TYP High stability: 0.001% per hour Ripple and noise: 0.08% p-p(Maximum current and Maximum Voltage), TYP
