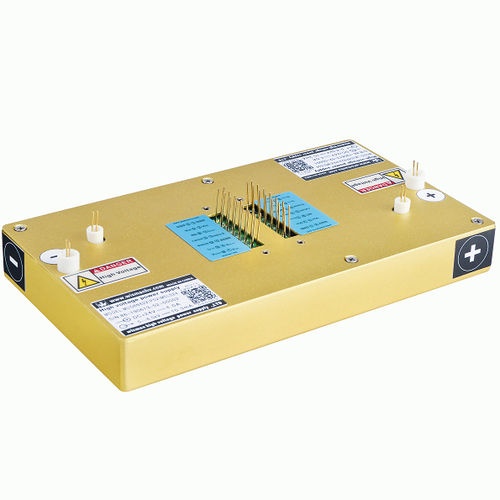

Tabletop power supply MUD

DC/DCstabilizeddual-output

Dual-channel output high-voltage power supply, each channel is controlled independently. Optional dual positive voltage 0-6kv, each 125W output, dual negative voltage 0-6kv, each 125W output, dual positive and negative simultaneously output 0-6kv, each 125W output. Wisman's MUD module has the highest output power of 60W, 125W, 250W, and the voltage range: 250V-60KV. MUD series modules can be unipolar output or bipolar output. When the output is unipolar, it can be used in the occasions with higher current requirements; when the output is bipolar, it is usually used for push-pull circuit power supply applications. The MUD series of high-power density devices are particularly suitable for high-energy pulses, amplifiers and charging devices with large capacitance, fast repetition rates and high current loads. The MUD series of high-power and high-voltage power modules are the current market-leading modules in terms of product appearance and power density. This SMT-based high-voltage power module has superior performance and high reliability. MUD is a system integrator OEM Ideal choice. APPLICATION: Capacitor Charging Pulsed power Pulse generator Test equipment applications ESD(Electrostatic Discharge Testing) Mass spectrometry Laser Cable Testing Dielectric Breakdown Testing High voltage testing Electron Beam/Ion Beam High stability: half an hour after starting up, <0.01%/8hr, 0.02%/24hr Ripple 0.1% Temperature coefficient 25ppm/℃ line regulation: 0.01% Load regulation: 0.01% Environmental: working temperature -10~+65℃(Option:-40~+65℃), storage temperature: -10~+70℃(Option:-55~+105℃) Storage temperature: -40- +105℃
