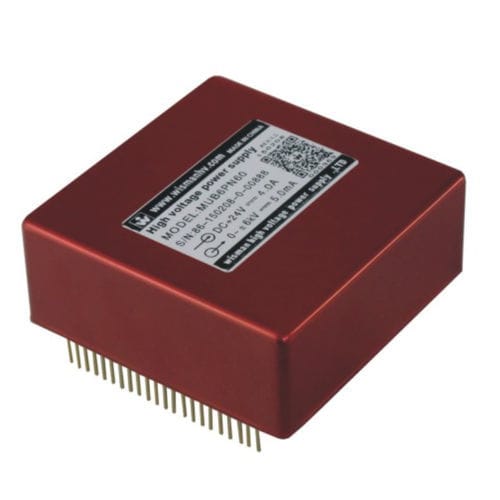

Printed circuit board power supply MUB

DC/DCdual-outputstabilized

Dual-channel output high-voltage power supply products, each channel is controlled independently. Optional dual-channel positive voltage 0-6kv, 30W output per channel, dual-channel negative voltage 0-6kv, 30W output per channel, dual-channel positive and negative simultaneous output 0-6kv, 30W output per channel. Wisman's MUB series module can output 2 channels of voltage, each channel can be selected at will, and each channel can be controlled separately. When the two channels are of the same polarity, they can be used for current Highly demanding occasions; when the two circuits have opposite polarities, they are usually used for push-pull circuit power supply applications. The MUB series is a high-power and high-voltage module power supply for printed circuit board mounting. The MUB series printed circuit board-mounted are playing a leading part in the market in terms of the products appearance and power density. This SMT-based high-voltage power supply module has superior performance and high reliability. MUB is an ideal choice for system integrators OEM. APPLICATIONS Capacitor Charging Pulsed power Pulse generator Test equipment applications ESD(Electrostatic Discharge Testing) Mass spectrometry Laser Cable Testing Dielectric Breakdown Testing High voltage testing Electron Beam/Ion Beam Ultra-low ripple Temperature coefficient:15 ppm per Celsius Line regulation:0.01％ load regulation:0.01％ Protective Functions: Units protected against reversed power input, reversed / essive controlling voltage input, continuous overloading / short circuit in output
