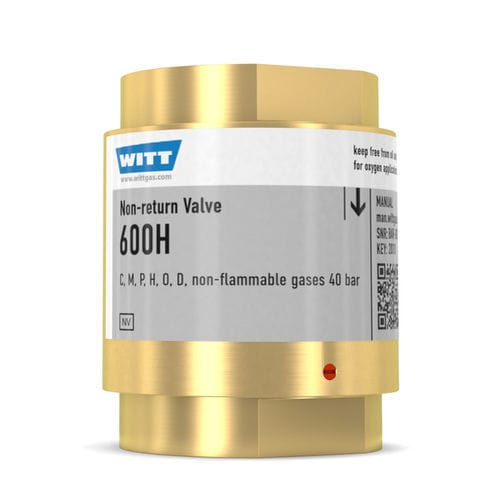

Gas non-return valve NV600H
for oxygenbrass

gas non-return valve
gas non-return valve
Add to favorites
Compare this product


Characteristics

Fluid
for gas
Applications
for oxygen
Material
brass
DN

Min.: 0.5 in

Max.: 1 in

Pressure

40 bar
(580.2 psi)

Temperature

70 °C
(158 °F)

Flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 1,900 m³/h
(67,097.87 ft³/h)

Description

WITT non-return valves (check valves) for reliable protection against dangerous reverse gas flow. Every non-return valve (check valve) 100% tested. Benefits: a spring-loaded non-return valve (check valve) prevents a reverse flow of gases which could lead to unwanted gas mixtures low opening pressure approx. 250 mbar no leaks – using a spring-loaded valve assembly with elastomer sealing diverse applications – useful for many technical gases reduce installation costs – the spring-loaded valve is not affected by gravity and may be installed in any orientation Operation / Usage: non-return valves (check valves) are used to protect equipment and pipelines against dangerous reverse gas flow Maintenance: annual testing of the non-return valve (check valve), body leak tightness and flow capacity is recommended WITT is happy to supply special test equipment non-return valves (check valves) are only to be serviced by the manufacturer Approvals Company certified to ISO 9001 and PED 2014/68/EC Module H CE-marked in accordance with PED 2014/68/EC Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service

Catalogs

No catalogs are available for this product.

See all of WITT-Gasetechnik‘s catalogs
