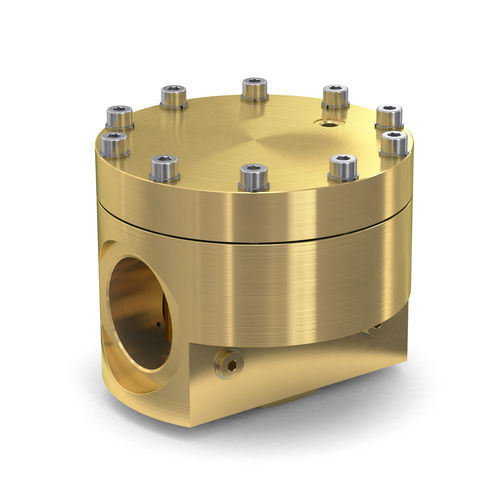

Gas pressure regulator BPR 2

dome-loadedsingle-stagebrass

The dome-loaded Back Pressure Regulator BPR2 from WITT demonstrates their expertise in gas pressure control equipment. This regulator maintains constant gas pressure in processes, system components, or tanks by regulating higher inlet pressure through a dome diaphragm, ensuring high precision. Unlike spring-loaded systems, the BPR2 back pressure regulator keeps back pressure stable regardless of gas flow fluctuations. It's ideal for gas blanketing in tanks, preventing hazardous overpressure by releasing gas when the set pressure is reached. The BPR2 offers rapid and precise back pressure control, enhancing the operability and quality of process systems. Features of the back pressure regulator Pilot Control Tube (PCT) One of the features enabling highly accurate control of inlet pressure Balanced Seat Design (BSD) An inlet pressure balanced main valve ensures precision and high reliability Rapid and accurate monitoring of inlet pressure provides process reliability Integrated connections for pilot gas and pressure gauges Inlet pressure regulation by external pilot pressure or proportional valve Simple to install and operate Removable spindle enables simple setting of the required outlet pressure Can be positioned at any angle / orientation For indoor and outdoor installation. Operation / Usage Ideal for process gas supply where constant back pressure is required. For example back pressure regulation from gas cushions in tanks Maintenance Annual testing of body leak tightness is recommended depending on application. Approvals Company certified according to ISO 9001, ISO 22000 and PED 2014/68/EU Module H
