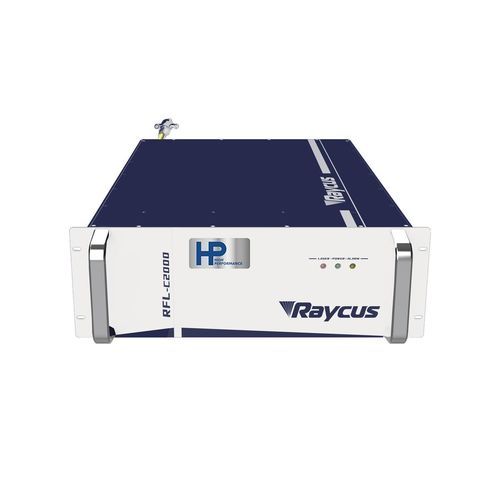

CW laser source RFL-C2000S-HP

fiberredfor cutting and welding

Overview
The HP-Series continuous-wave (CW) single-module fiber laser RFL-C2000S-HP provides 2000 W average output power for industrial processing. It is designed for integration in production environments and can be customized with options such as shutters and optocouplers to meet system safety and automation requirements. Typical application sectors include new energy (battery processing), automotive manufacturing, photovoltaics, sheet-metal processing and laser research.

Technical characteristics

• Low output power instability: ±1%
• Multiple anti-high-reflection protection mechanisms
• Flexible control interfaces: hard-wire and fieldbus options (DeviceNet / Profinet / EtherCAT, etc.)
• Compliant with international safety standards (CE, PLD certification)
• Intelligent monitoring: visible-beam, reflected-beam and leakage monitoring with real-time status signals
• Optimized for industrial processing with stable long-term operation

Optical properties

• Average output power (W): 2000
• Central wavelength (nm): 1080 ±5
• Maximum modulation frequency (kHz): 5
• Output power instability: ±1%
• Red laser (pilot): Yes

Output characteristics

• Output connector: QBH (customizable)
• Output fiber core diameter (μm): 50 (customizable)
• Beam quality (BPP, mm·mrad): 1.5–2
• Polarization state: random
• Output fiber length (m): 20 (customizable)

Electronic control characteristics

• Input power (V AC): 360–510, three-phase four-wire connection
• Control modes: RS232, AD, Ethernet, DeviceNet, Profinet, EtherCAT (customizable)
• Power adjustment range: 10–100%

Other characteristics

• Dimensions (mm): 485 × 172 × 727 (handle included)
• Weight (kg): <65
• Cooling method: water cooling
• Operating temperature (℃): 10–40

Applications

• Precision cutting
• Metal welding
• Sheet metal piercing
• Metal engraving
• Surface treatment
• 3D printing / rapid prototyping

Technical specifications

• Model: RFL-C2000S-HP
• Average output power: 2000 W
• Central wavelength: 1080 ±5 nm
• Maximum modulation frequency: 5 kHz
• Output power instability: ±1%
• Red laser (pilot): Yes
• Output connector: QBH (customizable)
• Output fiber core diameter: 50 μm (customizable)
• Beam quality (BPP): 1.5–2 mm·mrad
• Polarization state: random
• Output fiber length: 20 m (customizable)
• Input power: 360–510 V AC, three-phase four-wire
• Control modes: RS232, AD, Ethernet, DeviceNet, Profinet, EtherCAT (customizable)
• Power adjustment range: 10–100%
• Dimensions: 485 × 172 × 727 mm (handle included)
• Weight: <65 kg
• Cooling method: water cooling
• Operating temperature: 10–40 ℃
• Main industrial applications: battery processing for new energy, automotive manufacturing, photovoltaics, industrial cutting and welding, 3D printing, laser research
