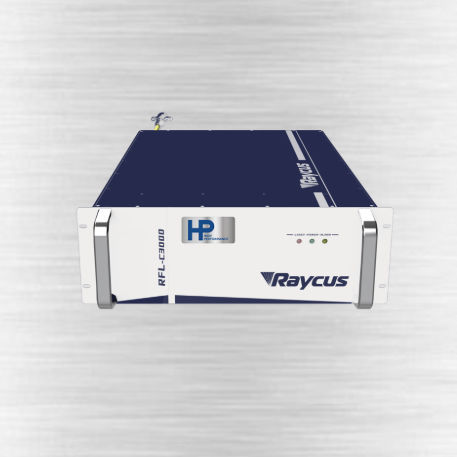

CW laser RFL-C3000S-HP

fiberredhigh-power

Product overview
The HP-Series continuous-wave (CW) single-module fiber lasers cover a power range of 300–40000 W. They provide stable output, integrated monitoring and enhanced safety features. Models can be customized with shutters, optocouplers and specific control interfaces to match industrial requirements in sectors such as new energy, automotive, photovoltaics, additive manufacturing and laser research.

Model
RFL-C3000S-HP

Technical characteristics

• Low output power instability (±1.5%)
• Multiple anti-high-reflection protection mechanisms
• Flexible control options: hard-wired and fieldbus interfaces (DeviceNet / Profinet / EtherCAT, etc.)
• Safety compliance: meets CE and PLd requirements
• Intelligent monitoring: visible beam, reflected beam and leakage monitoring with real-time status control
• Designed for efficient and precise industrial processing

Optical properties

• Average output power (W): 3000
• Central wavelength (nm): 1080 ±5
• Maximum modulation frequency (kHz): 5
• Output power instability: ±1.5%
• Red pilot laser: Yes

Output characteristics

• Output connector: QBH (customizable)
• Output fiber core diameter (μm): 50 (customizable)
• Beam parameter product (BPP) (mm·mrad): 1.5–2
• Polarization state: random
• Output fiber length (m): 20 (customizable)

Electronic control characteristics

• Input power (V AC): 360–510, three-phase four-wire connection
• Control modes: RS232, AD, Ethernet, DeviceNet, Profinet, EtherCAT (customizable)
• Power adjustment range (%): 10–100

Other characteristics

• Dimensions (mm): 485 × 172 × 727 (handle included)
• Weight (kg): <65
• Cooling method: water cooling
• Operating temperature (℃): 10–40

Applications

• Precision cutting
• Metal welding
• Sheet metal piercing
• Metal engraving
• Surface treatment
• 3D printing / rapid prototyping

Industry

• Metal processing
• Automotive manufacturing
• Shipbuilding / Aerospace
• Metallurgy

Technical specifications

• Model: RFL-C3000S-HP
• Average output power: 3000 W
• Central wavelength: 1080 ±5 nm
• Maximum modulation frequency: 5 kHz
• Output power instability: ±1.5%
• Beam quality (BPP): 1.5–2 mm·mrad
• Polarization: random
• Output connector: QBH (customizable)
• Output fiber core diameter: 50 μm (customizable)
• Output fiber length: 20 m (customizable)
• Input power: 360–510 V AC, three-phase four-wire
• Control interfaces: RS232, AD, Ethernet, DeviceNet, Profinet, EtherCAT
• Power adjustment range: 10–100%
• Dimensions: 485 × 172 × 727 mm (handle included)
• Weight: <65 kg
• Cooling: water cooling
• Operating temperature: 10–40 ℃
