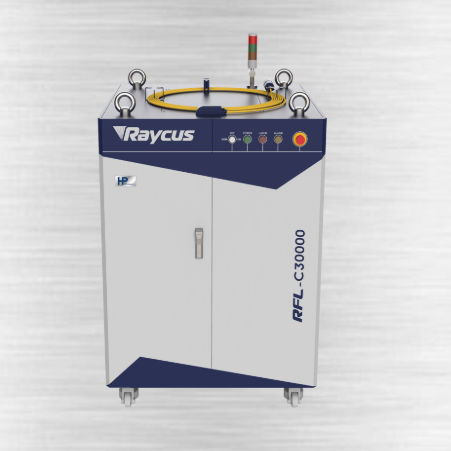

CW laser source RFL-C30000M-HP

fiberredfor welding

Product Overview
The HP-Series Multi-module CW Fiber Lasers developed by Raycus cover power levels from 4,000 W to 30,000 W. These lasers provide high electro-optical conversion efficiency, excellent beam quality and high energy density. Designed for industrial integration, they support wide modulation bandwidth, long service life and maintenance-free operation. Typical applications include welding, precision cutting, melting and cladding, surface processing and 3D printing; the optical output is suitable for robotic integration in flexible manufacturing cells.

Technical characteristics

• High electro-optical conversion efficiency
• Customized output fiber length
• Output cable: QD
• Maintenance-free operation
• Wide modulation frequency range
• High power instability
• Multiple anti-high-reflection mechanisms
• Various control methods: hard wire and bus control interfaces
• High safety standards: meets CE and PLD requirements
• Intelligent monitoring: visible-light signal, reflected-beam and leak monitoring with real-time status control
• Optimized for industrial applications: efficient and precise processing

Optical Properties

• Average output power (W): 30000
• Central wavelength (nm): 1080 ±5
• Maximum modulation frequency (kHz): 5
• Output power stability: ±1.4%
• Red laser: Yes

Output characteristics

• Output connector: QP
• Output fiber core diameter (μm): 150
• BPP (mm·mrad): ≤4.3
• Polarization state: random
• Output fiber length (m): 30 (customizable)

Electronic control characteristics

• Input power (V AC): 360–510, three-phase four-wire
• Control mode: Ethernet, DeviceNet, PROFINET, PROFIBUS
• Power adjustment range (%): 10–100

Other characteristics

• Dimensions (mm): 1050 × 1540 × 1290 (handle included)
• Weight (kg): <900
• Cooling method: water cooling
• Operating temperature (℃): 10–40

Applications

• Cutting
• Welding
• Cladding
• Surface treatment

Technical specifications

• Brand: Raycus
• Model: RFL-C30000M-HP
• Series: HP-Series Multi-module CW Fiber Laser
• Average output power: 30000 W
• Central wavelength: 1080 ±5 nm
• Maximum modulation frequency: 5 kHz
• Output power stability: ±1.4%
• Output connector: QP
• Output fiber core diameter: 150 μm
• BPP: ≤4.3 mm·mrad
• Polarization: random
• Output fiber length: 30 m (customizable)
• Input power: 360–510 V AC, three-phase four-wire
• Control interfaces: Ethernet, DeviceNet, PROFINET, PROFIBUS
• Power adjustment range: 10–100%
• Dimensions (mm): 1050 × 1540 × 1290 (handle included)
• Weight: <900 kg
• Cooling: water cooling
• Operating temperature: 10–40 ℃
