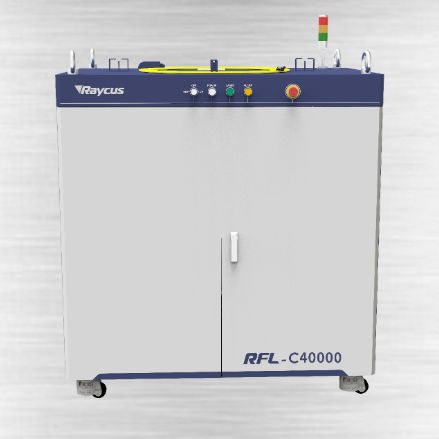

CW laser source RFL-C40000M-HP

fiberredfor materials processing

Overview
Fiber lasers offer a compact, ready-to-use solution with higher electro-optical conversion efficiency, lower power consumption and improved beam quality compared with traditional lasers. The flexible output configuration enables straightforward integration with industrial systems.

Technical characteristics

• High electro-optical conversion efficiency
• Customizable output fiber length
• Output cable: QP
• Maintenance-free operation
• Wide modulation frequency range

Optical Properties

• Average output power (W): 40000
• Central wavelength (nm): 1080±5
• Maximum modulation frequency (kHz): 2
• Output power stability: ±1.4%
• Red laser: Yes

Output characteristics

• Output connector: QP
• Output fiber core diameter (μm): 150
• BPP (mm·mrad) ≤ 7
• Polarization state: random
• Output fiber length (m): ≤20 (customizable)

Electronic control characteristics

• Input power (V AC): 323-437, three-phase four-wire connection @50-60 Hz
• Control mode: AD
• Power adjustment range (%): 10-100

Other characteristics

• Dimensions (mm): 1590 × 1570 × 1160 (handle included)
• Weight (kg): <1500
• Cooling method: water cooling
• Working temperature (℃): 10-40
• Working environment humidity range (%): <70
• Storage temperature (℃): -10 ～ 60

Applications

• Cutting
• Welding
• Cladding
• Sintering
• Surface treatment

Industries

• Car manufacturer
• Ship / Aerospace
• Metallurgy
• Metal processing

Technical specifications

• Model: RFL-C40000M-HP
• Average output power: 40000 W
• Central wavelength: 1080±5 nm
• Maximum modulation frequency: 2 kHz
• Output power stability: ±1.4%
• Output connector: QP
• Output fiber core diameter: 150 μm
• BPP: ≤7 mm·mrad
• Polarization: random
• Output fiber length: ≤20 m (customizable)
• Input power (V AC): 323-437, three-phase four-wire @50-60 Hz
• Control mode: AD
• Power adjustment range: 10-100%
• Dimensions (mm): 1590×1570×1160 (handle included)
• Weight: <1500 kg
• Cooling: water cooling
• Operating temperature: 10-40 ℃
• Operating humidity: <70%
• Storage temperature: -10 to 60 ℃
