Portable conductivity meter UHV-560digitalwith automatic temperature compensationwith data logger
Add to favorites
Compare this product
Characteristics
- Type
- portable
- Other characteristics
- digital, with LCD display, with automatic temperature compensation, with data logger, with conductivity meter, with thermometer
- Applications
- for determination of salt concentration
Description
Overview
Key features
Technical specifications

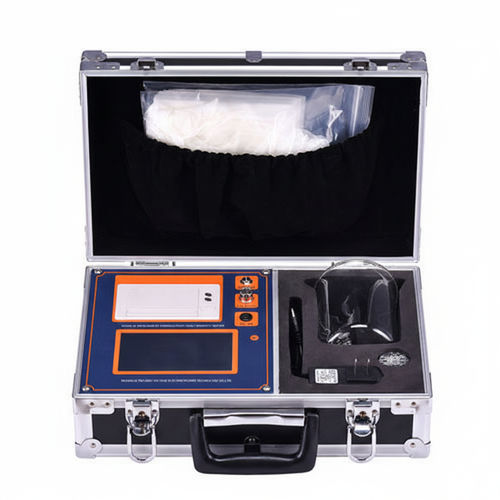

- The UHV-560 is a portable conductance-based salt density tester that directly measures surface equivalent salt density (ESDD) on insulators and displays ESDD, conductivity and temperature without conversion.
- Designed for field use with a color touch LCD, switchable Chinese/English interface and large data storage capacity.
Key features
- Automatic range switching and fast measurement speed (approx. 2.5 s per measurement).
- Salt density measuring range: 0.0001 mg/cm2 ～ 9.9999 mg/cm2.
- Conductivity range: 0 ～ 200000 μs/cm; measurement temperature range: 0 ℃ ～ 100 ℃.
- Automatic temperature compensation; displays standard conductivity and equivalent salt (ESDD) at 20 ℃.
- Function to automatically remove salt content from the original solution to reduce cleaning-solution requirements.
- Automatic conversion between ESDD measured without applied voltage and ESDD measured with applied voltage.
- 480 × 272 color touch LCD for direct display; switchable Chinese/English UI.
- Data storage up to 100,000 records; export to USB (U disk) and printing; individual record consult/delete/export and delete-all option.
- Built-in rechargeable lithium battery (2600 mAh) suitable for field operation.
Technical specifications
- Salt density range: 0.0001 mg/cm2 ～ 9.9999 mg/cm2; resolution 0.0001 mg/cm2; full-range accuracy ±2%.
- Conductivity range: 0 ～ 200000 μs/cm; resolution 0.01 μs/cm.
- Measurement temperature: 0 ℃ ～ 100 ℃; resolution 0.1 ℃; accuracy ±0.5 ℃.
- Operating environment: temperature 0 ℃ ～ 60 ℃; humidity <90% RH.
- Display: 480 × 272 color touch LCD.
- Dimensions (case): 356 mm × 260 mm × 133 mm; weight: about 2.5 kg.
- Battery: built-in rechargeable lithium battery, 2600 mAh.
- Data capacity: up to 100,000 records; supports USB export and printing.
