Voltage tester FC-2GB

lightning immunityinsulation resistancespark gap

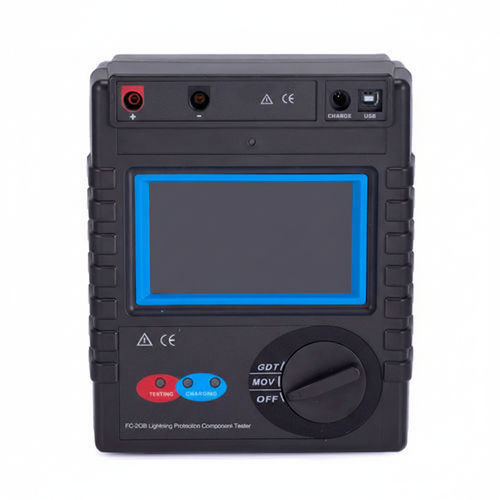

FC-2GB Lightning Protection Components Tester is a portable instrument for measuring DC parameters of over-voltage protection components. It is intended for verification, routine testing and batch/continuous testing of ZnO arresters, cermet two- and three-electrode discharge tubes, vacuum lightning tubes and other over-voltage protection components.

Applications

• Testing zinc oxide arresters (varistors, VDR).
• Testing cermet 2- and 3-electrode discharge tubes and vacuum lightning tubes.
• Verification and production-line testing of other over-voltage protection devices.

Key features

• Performs DC parameter testing: voltage-dependent resistance (varistor), DC breakdown voltage of discharge tubes and leakage current measurements.
• Can operate as a regulated DC supply and as a constant-current source for specific test conditions.
• HV short-circuit protection and over-current protection; high-voltage preset and measurement range adjustment; HV self-discharge time < 0.5 s.
• Built-in self-calibration to improve measurement reliability.
• LCD display with high precision and reliable readout.
• Pre-set measurement range with audible alarm when results exceed the range.
• Continuous measurement mode for mass testing and production inspection.
• Simple front-panel operation; lightweight and portable design.

Technical specifications

• Voltage-dependent resistor (U1mA): measurement range 0 ~ 1999 V; accuracy ≤ ±1% ±1 digit; test condition: 1 mA ± 5 μA.
• Leakage current (at ~0.75·U1mA): measurement range 0 ~ 199.9 μA; accuracy ≤ ±1 μA ±1 digit.
• Discharge tube — DC breakdown voltage (Vsdc): range 5 ~ 1999 V; accuracy ≤ ±1% ±1 digit; test condition: voltage rise rate 100 V/s ±10%.
• Insulation resistance: 6 MΩ (measured at 500 V).
• Voltage withstand: AC 1.5 kV, 50 Hz, 1 min.
• Working conditions: temperature 0 ~ +40 °C; humidity ≤ 85% RH.
• Storage conditions: temperature -10 °C ~ +50 °C; humidity ≤ 90% RH.
• Power supply: dedicated DC 12 V.
• Power consumption: 8 W.
• Dimensions: 208 mm × 190 mm × 78 mm.
• Weight: ≤ 1 kg.

Documents and deliverables

• User manual (PDF).
• Calibration certificate (PDF) available on request.
