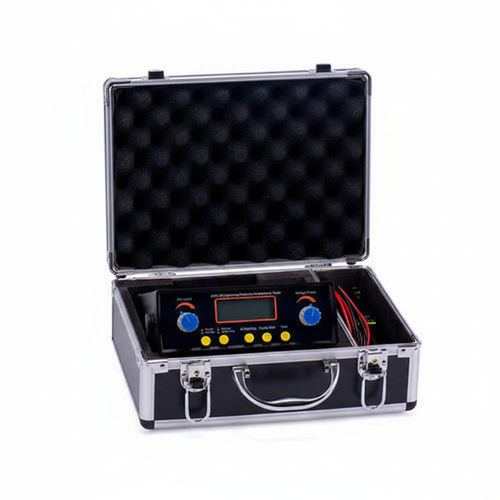

Varistor tester FC-2G

for lightning arrestorstubefor varistor

The FC-2G lightning protection components tester is designed to measure DC parameters of zinc oxide arresters (varistors), cermet two- and three-electrode discharge tubes and other surge-protection components. It also functions as a regulated power supply and a constant-current source for test setups.

Key features:

• Applicable to DC parameter testing of ZnO arresters (voltage-dependent resistors), cermet 2-/3-electrode discharge tubes, vacuum lightning tubes and similar overvoltage protection components.
• Operates as a regulated power supply and as a constant-current source.
• High-voltage (HV) short-circuit protection and over-current protection; HV preset and range adjustment functions; HV self-discharge time < 0.5 s.
• Built-in self-calibration function.
• LCD display providing precise readings and reliable operation.
• Pre-set measurement range with audible alarm when measured value exceeds the set range.
• Continuous measurement mode for batch testing and production control.
• Simple front-panel operation; lightweight and portable (dimensions and weight below).

Technical specifications:

• Voltage-dependent resistor measurement: Voltage (U1mA) range 0 ~ 1999 V; accuracy ≤ ±1% ±1d; test condition: 1 mA ±5 μA.
• Leakage current: range 0 ~ 199.9 μA; accuracy ≤ ±1 μA ±1d; test condition referenced to 0.75 U1mA.
• Discharge tube measurement: DC breakdown voltage (Vsdc) range 5 ~ 1999 V; accuracy ≤ ±1% ±1d; test condition: voltage rising rate 100 V/s ±10%.
• Insulation resistance: up to 6 MΩ (measured at 500 V).
• Voltage withstand: AC 1.5 kV, 50 Hz, 1 min.
• Working conditions: temperature 0 ~ +40 °C; humidity ≤ 85% RH.
• Storage conditions: temperature -10 °C ~ +50 °C.
• Power consumption: 8 W.
• Dimensions: 208 mm × 190 mm × 78 mm.
• Weight: ≤ 1 kg.
• Aliases: Lightning Protection Components Meter; Lightning Protection Meter.
