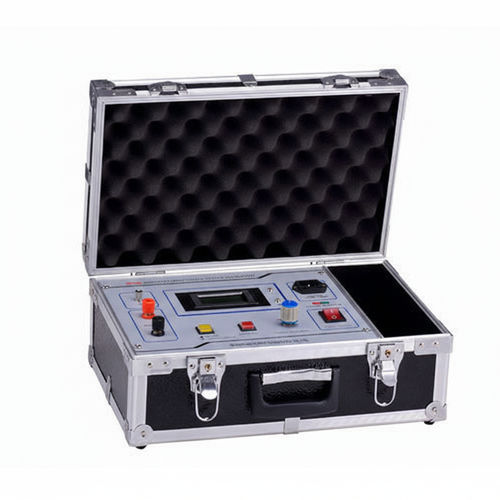

Multifunction calibrator UHV-545voltagecurrentportable
Add to favorites
Compare this product
Characteristics
- Physical quantity
- multifunction, voltage, current
- Options
- portable, digital
Description
Overview
Key features
Alternate names
Technical specifications
- The UHV-545 records lightning strikes and performs online leakage-current monitoring of surge arresters. It employs a double-valve measurement structure and can generate defined output surge-current waveforms (8/20 μs) with amplitude >100 A. An integrated ammeter enables direct leakage-current checks on-site.
Key features
- Double-valve structure measurement for consistent detection of arrester discharges.
- Generates 8/20 μs surge current waveforms with amplitude >100 A for functional testing.
- Online leakage-current monitoring with integrated ammeter (check current range 0–10 mA).
- Compact and lightweight design for field portability and on-site inspection.
- Safe and fast measurement procedure delivering repeatable results.
Alternate names
- Arrester Discharge Counter Tester
- Arrester Discharge Tester
Technical specifications
- Output voltage: AC 220 V ±10% 50 Hz; DC 12 V.
- Surge voltage: 0–1600 V, accuracy ±2% ±5 V (higher voltage customizable on request).
- Surge current: >100 A (8/20 μs waveform).
- Leakage check current (ammeter): 0–10 mA, ±2% ±3 digits.
- Instrument power consumption: <30 VA.
- Dimensions: 320 × 240 × 150 mm.
