DC charge/discharge bank UHV-220/30CFK

laboratoryportableAC

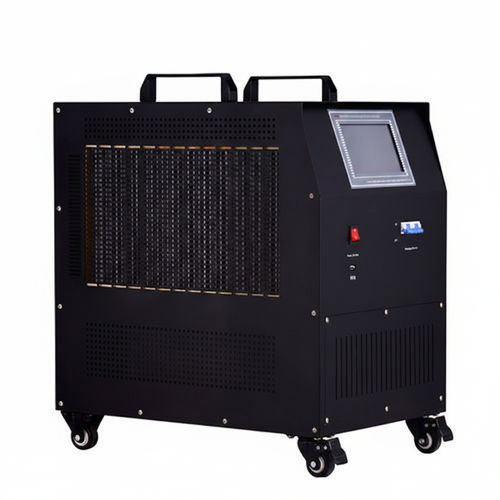

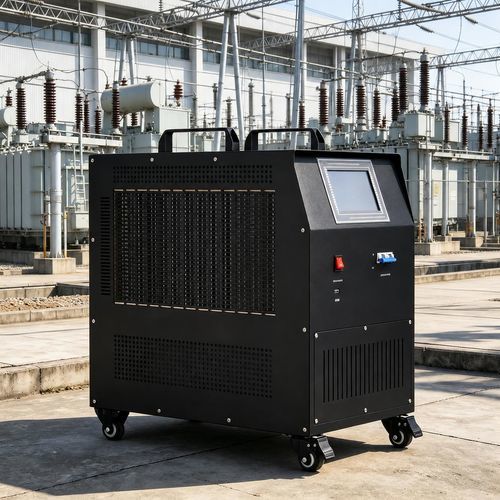

The UHV-220/30CFK is a battery charge and discharge tester for battery packs, combining adjustable wide voltage ranges, configurable current stages, wireless per-cell monitoring and dual‑CPU safety architecture for laboratory and production testing.

Key features:

• Continuously adjustable voltage ranges (configurable for 10–300 V or 10–600 V) to support multi‑grade battery pack testing.
• Integrated functions: charge, discharge, cell detection, online monitoring and activation in a single unit.
• Wireless cell monitoring modules: up to 12 cells per module for simultaneous per‑cell data capture.
• PC analysis software (Chinese UI) with remote discharge control and USB data export.
• Local data storage: 2 GB internal memory for extended test logging.
• Dual‑CPU architecture to separate measurement and safety control.
• Flexible test control: modify parameters or pause tests temporarily without terminating ongoing cycles; auto‑stop triggers by voltage, time or capacity.

Technical advantages:

• Comprehensive voltage coverage (10–600 V) for diverse battery-pack configurations.
• All‑in‑one bench or production solution reducing auxiliary equipment needs.
• Per‑cell wireless monitoring enabling detailed cell-level analysis and fault detection.
• Robust safety and measurement reliability through CPU redundancy and isolation tests.
• Flexible operation modes: single unit, multi-unit simultaneous operation, remote control and status monitoring.

Technical specifications:

• Working modes: single unit operation, parallel multi‑unit operation; supports remote control and status monitoring.
• Charging voltage: 10–300 V (standard) or 10–600 V (extended).
• Charging current (variants): 0–40 A; 0–60 A; 0–20 A (model dependent).
• Discharge voltage: 10–300 V (standard) or 10–600 V (extended).
• Discharge current (example ranges): 10–19 V: 0–50 A; 19–180 V: 0–100 A; 180–300 V: 0–50 A. Alternative high‑current variant: 10–19 V: 80 A; 19–180 V: 120 A; 180–300 V: 80 A; 300–600 V: 50 A.
• Current accuracy: ±1%.
• Voltage accuracy: ±0.5%.
• Single‑cell voltage accuracy: ±0.2%.
• Single‑cell measurement range/resolution: 0.500 V – 16.00 V (resolution 1 mV).
• Charge/discharge timer: 0 ~ 99 hours 59 minutes.
• Power supply: AC 220 V / 380 V; single‑phase three‑wire: 220 V AC (−20% ~ +30%), 45 ~ 65 Hz.
• Withstand voltage tests: input–housing 2200 V DC 1 min; input–output 2200 V DC 1 min; output–housing 700 V DC 1 min.
• Safety standard: complies with EN61095.
• Dimensions: 461 x 225 x 390 mm.
• Weight: one charger: 17.5 kg; two chargers: 20 kg.
• Handling: industrial universal wheels.
• Cooling: forced air cooling.
• Operating temperature: -5 ~ 50 °C; storage temperature: -40 ~ 70 °C.
• Humidity: relative humidity 0 ~ 90% (at 40±2 °C).
• Rated altitude: 4000 m.
• Noise: < 60 dB.
• AC input wiring: GB socket, suitable for 1 ~ 1.5 mm² cable.
• DC output wiring: instrument cable 25 mm² with quick‑connect plug (red = positive, black = negative).
• Data interface: USB export and PC software for analysis; 2 GB internal storage.
