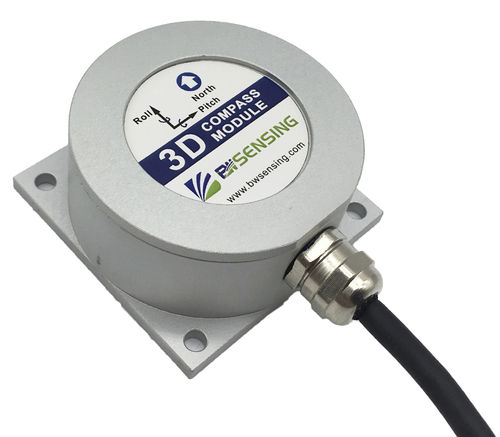

Electronic compass SEC385

3D

SEC385 Angle Compensation 3D Compass SEC385 Product Introduction： The SEC385 is a 3-axes digital compass with high accuracy. It offers high accuracy heading information when tilt angle reaches 80° initially. SEC385 is is widely used in the antenna steadiness, vehicle navigation, system integration, etc. Technical Specifications Heading Accuracy：0.5° Pitch Accuracy：0.1° Roll Accuracy：0.1° Voltage：5V DC Output Mode：RS232/RS485/TTL Optional, Modbus Optional Dimension: 60×59×29mm Protection Level: IP67 If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding. It has the advantages of small size and low power consumption, and is suitable for sensitive measurement Systems with small size and high précision. The SEC385 intégrâtes a three-axis magnetic sensor that compensâtes for the tilt angle with a three-axis accelerometer when the heading is solved in real time by the central processor, providing accurate heading data in very harsh environments. The SEC385 supports RS232, RS485 and TTL level output interfaces. The output baud rate is 2400-115200, and the output angle is 0°~360°. There are two types of hexadécimal and Modbus protocols. It can be adapted to different application scénarios and can integrate the electronic compass function into various Systems very conveniently and quickly.
