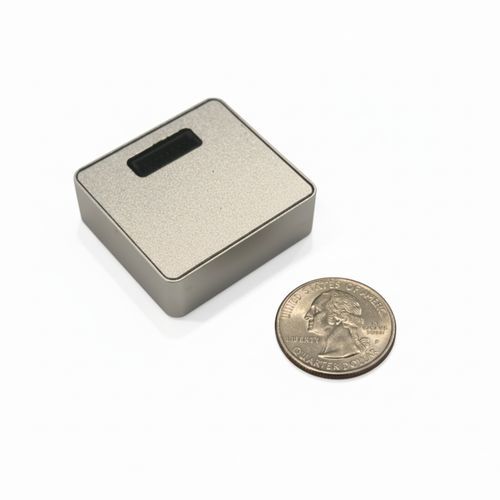

Lightweight attitude and heading reference system BW-DMC630

miniature9-axis

Product Introduction: - 3-axis accelerometer, 3-axis magnetometer, 3-axis gyroscope - Heading accuracy 1°, pitch and roll accuracy 0.2° - Fast Calibration Algorithm - High precision, low cost - Wide temperature range: -40℃~ +85℃ - Volume: L33*W31*H12(mm) - Resistance to shock Technical Specifications: Azimuth Angle - Measuring range: 0~360° - Accuracy: ≤ 1° (RMS) after spatial calibration - Resolution: 0.1° - Repeatability: 0.5° (RMS) Pitch angle - Measuring range: ±90° - Accuracy: ≤0.2° (RMS) - Resolution: 0.05° (RMS) - Repeatability: 0.05° (RMS) Roll angle - Measuring range: ±180° - Accuracy: ≤0.2° (RMS) - Resolution: 0.05° (RMS) - Repeatability: 0.05° (RMS) Range - Accelerometer range: ±4g - Gyroscope range: ±500°/s Environments - Baud rate: 9600~460800 (default 9600) User calibration procedure - Calibration: 16-point calibration Applications: - Humanoid robots - Rotary-wing drone - AGV - Medical assistive devices - Motion capture - Buoy attitude - Observation equipment - Night Vision Product Size: - Volume: L33*W31*H12(mm) Characteristics / Technical Specifications: - 3-axis accelerometer, 3-axis magnetometer, 3-axis gyroscope - Heading accuracy: 1° (RMS) after spatial calibration - Pitch and roll accuracy: 0.2° (RMS) - Resolution: 0.1° (azimuth), 0.05° (pitch/roll) - Repeatability: 0.5° (azimuth), 0.05° (pitch/roll) - Accelerometer range: ±4g - Gyroscope range: ±500°/s - Baud rate: 9600~460800 (default 9600) - 16-point calibration procedure - Operating temperature: -40℃~ +85℃ - Volume: L33*W31*H12(mm)
