electronic compass electronic compass - SEC220
{{requestButtons}}

Characteristics

  • Technology:

    electronic

Description

SEC220

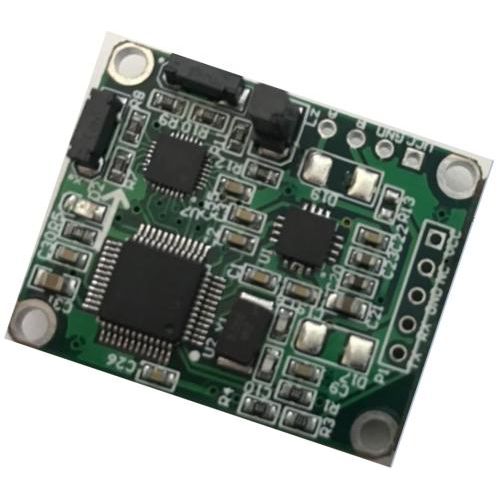

Two dimensional electronic compass SEC220

Product Introduction:

SEC220 with high reliability and strong anti-interference ability of the industrial grade single-chip and high precision magnetic sensor and driver chip, integrated magnetic interference and soft magnetic interference compensation technology.

Technical Specifications

Heading Accuracy:1°

Pitch Accuracy:0.15º

Roll Accuracy:0.15º

Voltage:5V DC

Output Mode:RS232/RS485/TTL Optional, Modbus Optional

Dimension: 33×27×5mm

Protection Level: IP67

If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.

The SEC220 supports RS232, RS485 and TTL output interfaces. The output baud rate is 2400-115200, and the output angle is 0°~360°. There are two types of hexadécimal and Modbus protocols. It can be adapted to different application scénarios and can integrate the electronic compass function into various Systems very conveniently and quickly.
