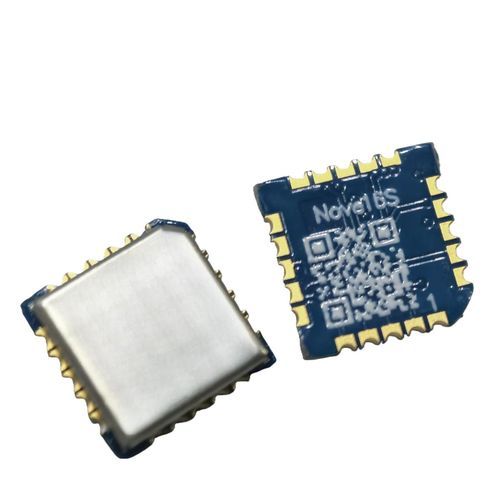

Miniature attitude and heading reference system BW-DMC640

lightweight

Product Introduction: - Three-axis gyroscope, three-axis magnetometer, three-axis accelerometer - IMU output up to 1000HZ - Rapid calibration algorithm - High precision, compact size - Wide operating temperature range: -40°C to +85°C - Dimensions: L10 × W10 × H2.4(mm) Technical Specifications: - Power voltage: 3.3 V DC - Working current: <150 mA - Operating temperature: -40℃~+85℃ - Storage temperature: -55℃~+100℃ Accelerometer: - Range: ±8g - Noise density: 200 µg/√Hz - Bandwidth: 100 Hz - Zero bias stability (ALLEN): 0.15 µg Gyroscope: - Range: ±400°/s, ±1000°/s - Noise density: 1.5 mdps/√Hz, 5 mdps/√Hz - Bandwidth: 100 Hz - Zero bias stability (ALLEN): 3 °/h Environment: - Baud Rate: 9600–921600 (default 115200) User Calibration Procedure: - Calibration Method: Rapid calibration Connector: - USB Type-A cable (1m length) Protection level: - Not specified (does not represent final product protection rating) Shell material: - Magnesium-aluminium alloy anodised finish Installation: - 2 x M2 copper bolts Product Size: - Characteristics / Technical Specifications: - Three-axis gyroscope, magnetometer, and accelerometer - IMU output up to 1000Hz - Rapid calibration algorithm - High precision, compact size - Operating temperature: -40°C to +85°C - Storage temperature: -55°C to +100°C - Power voltage: 3.3V DC - Working current: <150mA - Accelerometer range: ±8g - Gyroscope range: ±400°/s, ±1000°/s - Noise density: 200 µg/√Hz (accelerometer), 1.5 mdps/√Hz and 5 mdps/√Hz (gyroscope) - Bandwidth: 100Hz - Zero bias stability: 0.15 µg (accelerometer), 3 °/h (gyroscope) - Baud Rate: 9600–921600 (default 115200) - Calibration: Rapid calibration - Connector: USB Type-A cable (1m) - Shell: Magnesium-aluminium alloy anodised finish - Installation: 2 x M2 copper bolts
