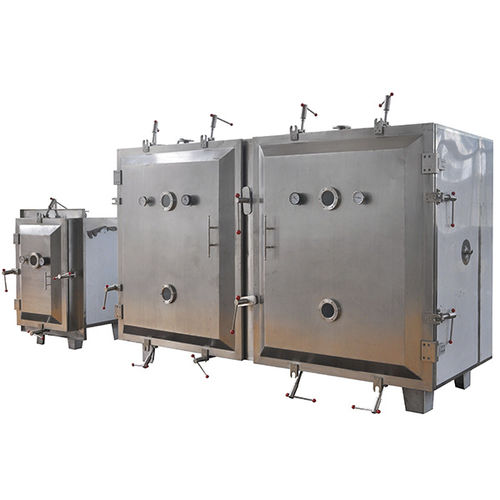

Cabinet oven ZDF series

dryingsteamvacuum

Material:SS304, SS316L, Ti, Hastelloy, PTFE lined or other materials Application:pharmaceutical, food, light, chemical and other industries. Features ➤Vacuum oven is specially designed for drying heat-sensitive, easily decomposed and oxidized material. Inert gas can be filled into oven, so stuff with some complicated composition can also be dried in a short time. Faster drying speed happens in lower temperature while heat is fully used. ➤Sterilization treatment can be done before drying. And in the drying process, any impurity is prohibited. The dryer is static and vacuum, so that the formation of dry material will not be damaged. ➤It can work in a high vacuum state of 20Pa. Heating methods: steam, hot water and heat conducting oil. a universal batch dryer suitable for drying materials such as powders, granules, pastes and viscous slurries, especially when products are heat sensitive, contain solvents and are toxic or explosive. The vapors are removed through a dust filter fitted on top of the vessel. This then prevents the dust from penetrating into the vacuum system. drying heat-sensitive products Sampler for taking samples from the product inside the dryer under vacuum. Advantage ➤The advantages are fast drying speed, little pollution and good product quality. The oven keep the work space vacuum and dry by vacuum pump, which helps reduce the boiling point and fasten drying speed. ➤It works under the negative pressure with less oxygen content, which can reduce or eliminate the oxidation reaction. ➤Under the negative pressure, boiling point is reduced, and it avoids the damage of material’s quality.
