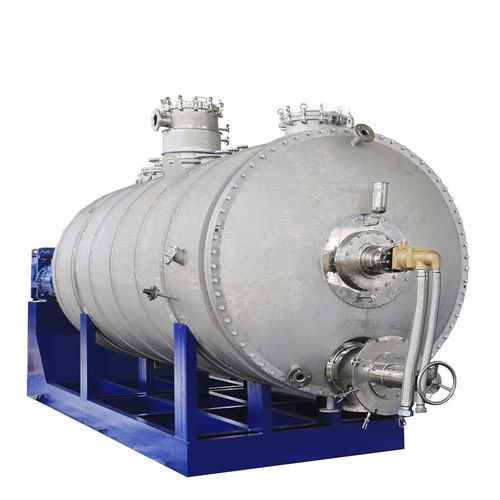

Vacuum dryer

paddlebatchfor the chemical industry

➤ Heat sensitive materials of low-temperature drying requirement. ➤ Easily oxidized, explosive, strong stimulation, highly toxic materials. ➤Organic solvent of materials that needs to be recycled. a universal batch dryer suitable for drying materials such as powders, granules, pastes and viscous slurries, especially when products are heat sensitive, contain solvents and are toxic or explosive. The vapors are removed through a dust filter fitted on top of the vessel. This then prevents the dust from penetrating into the vacuum system. drying heat-sensitive products Sampler for taking samples from the product inside the dryer under vacuum. Vacuum rake dryer, it is an innovation horizontal batch-type vacuum drier improved on the basis of absorbing technology of domestic rake drier. The moisture of wet material will be evaporated by heat transmission. The stirrer with grinding scraper will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be drawn out by vacuum pump. Feature 1. Being installed stirrer in the machine, it makes raw material form the state of continuous circle inside the body, so heating uniformity of raw material is raised greatly. 2. Being installed stirrer in the machine, slurry and paste shape material can be dried easily. 3. Special design for discharging port, make better sealing and less material accumulation, discharge is easy. 4. There are two seal model, mechanical seal and packing seal. The design supply good seal and long life. 5. The special techniques of shaft and rake support high strength and concentric.
