Vacuum dryer

for the chemical industryfor the pharmaceutical industryfor granule

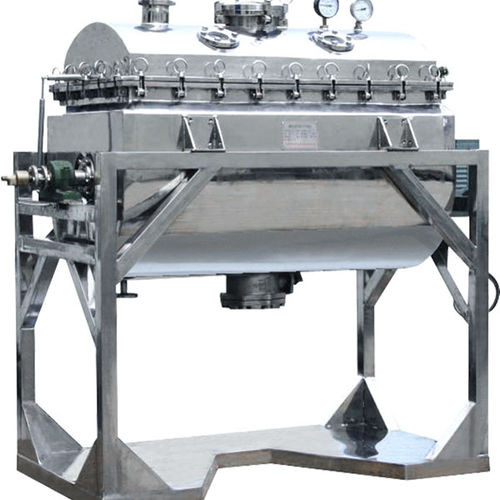

The U-shape mixing vacuum dryer is one of the main drying equipments that make various antibiotics, crystal and other granular materials in pharmaceutical and the chemical industries. It is especially applicable to drying strong adhesive material. Structure and Characteristics 1. U-shape vacuum drier has a jacket to conduct heat. Its slot cover canopen automatically and heat at the same time. There is ahollow agitatorwhich can conduct heat inside the vessel, and this agitator rotatesclockwise and anticlockwise, then the material inside the vessel will fullaccp/ heated during forced mixing, speeding up the evaporation, andtake away the steam through vacuuming to dry. 2. The equipment can be made from SS304, SS316L, Ti, Hastenoy PTFElined or other materials, and the jacket and heat insulation areall madefrom SUS 304 or 316 L stainless steel, both inside and outside walls arell polished, not only easier to clean to meet the sterile requirement ofmedicine, but also helping the heat conduction, shorten the drying time. 3. The equipment has bigger area for conducting heat, (Compared with thedouble-cone rotary vacuum dryer, it has over 1/3 more areas forconducting heat, with 70% loading capacity, 50% drying time less). It hashigh heat conduction coefficient, small covering area, and lots of otheradvantages. 4. Low operation cost. The secondary cycloidal-pin wheel reducer isapplicable for driving s power is 4KW which is 40% lower than that ofother driers of diferent types. Therefore, the driving power is low and thesped ratio is high, fss que can greatly reduce power consumption.
