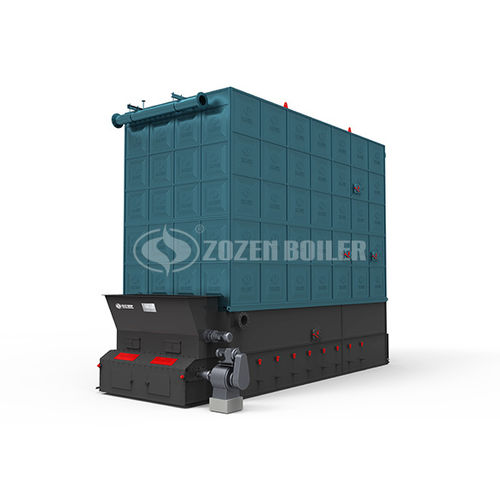

Oil heater YLW series

ductconvection

YLW series coal-fired/biomass-fired thermal oil heater Thermal oil Product thermal capacity: 1400-29000 KW Working pressure: 0.8-1.0 MPA Outlet temperature: 320 °C Available fuel: Bituminous coal, anthracite, biomass particles Available industries: Chemical,high temperature heating technology for fertilizer, melamine, alumina and so on Introduction YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine. Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan. Technical advantages • Digitized manufacture • The laying-off of steel tube adopts CNC 3D laser cutting machine. • The manufacture of square coil tube adopts CNC three-dimensional tube bending machine, no forced shaping. • The manufacture of serpentuator adopts serpentuator automatic production line, once-forming.
