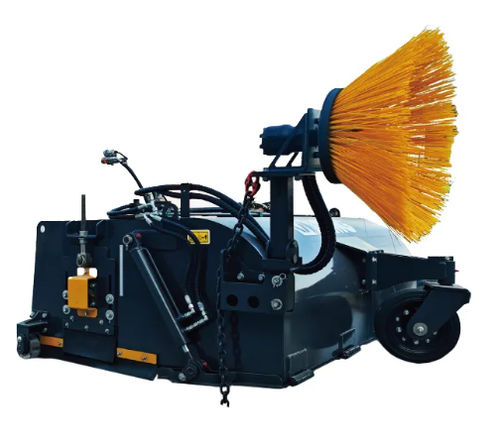

Skid steer loader mechanical sweeper XSBS72 series

hydraulicoutdoordust

Product Overview
The enclosed sweeper attachment is designed for skid steer loader mounting with quick‑change capability and compact footprint. It supports 360° maneuverability for confined urban and agricultural cleaning tasks and uses a hydraulic drive with forward and reverse modes for flexible operation.

Features

• Effective removal of dust and debris across varied site conditions.
• Motor end includes an anti‑winding device to prevent wire entanglement and extend motor life.
• Hydraulic drive with two direction modes: forward and reverse.
• Quick‑mount design for skid steer loaders and compact operational footprint suitable for tight workspaces.

Models / Options

• Available model options: SR10, SR12, SV10, SV12, TV10, TV12.
• Main product series identifiers: XSBS72HB and XSBS72HQ.

Warranty & After-sales

• Warranty: One year.
• After-sales support: Engineers available for overseas service; online support, video assistance, spare parts and technical documentation provided.

Ordering & Delivery

• Minimum Order Quantity: 1 unit.
• Delivery time: In stock (within 7 days); Production (15–20 days); Customization: delivery time to be negotiated.

Shipping & Payment

• Shipping supported by sea freight, land freight and air freight.

Specification table (excerpt)
Item | Unit | XSBS72HB | XSBS72HQ
Specification | in | 72 | 72
Weight | kg | 782 | 710
Dimensions L×D×H | mm | 2210×2395×965 | 1790×2260×885
Operating Width D1 | mm | ≥1830 | ≥1830
Working Flow | L/min | 60–80 | 60–80
Working Pressure | MPa | 14–21 | 14–21
Brush Diameter | mm | 660 | 660
Motor Displacement | ml/r | 315 | 315
Compatible Models | - | SR07 / SR08 / SR10 / SR12 / SV10 / SV12 / TV10 / TV12 | SR07 / SR08 / SR10 / SR12 / SV10 / SV12 / TV10 / TV12

Technical specifications

• Weight: 782 kg (XSBS72HB); 710 kg (XSBS72HQ).
• Working flow: 60–80 L/min.
• Working pressure: 14–21 MPa.
• Operating width: ≥1830 mm.
• Brush diameter: 660 mm.
• Motor displacement: 315 ml/r.
• Dimensions (XSBS72HB): 2210 × 2395 × 965 mm; (XSBS72HQ): 1790 × 2260 × 885 mm.
• Compatible with skid steer loader models: SR07 / SR08 / SR10 / SR12 / SV10 / SV12 / TV10 / TV12.
• Available model options: SR10 / SR12 / SV10 / SV12 / TV10 / TV12.
• Warranty: One year. Minimum order quantity: 1 unit.
