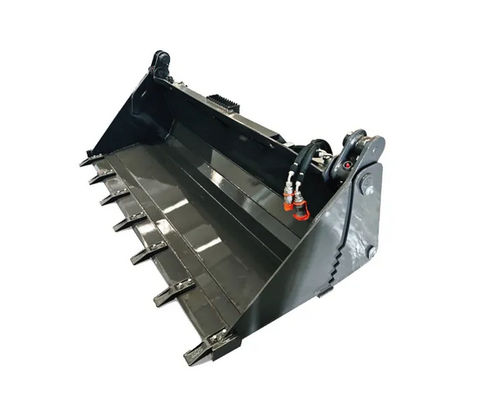

Combination bucket Sr07

for skid steer loaders

Overview
360° steering and rapid attachment changes. Designed for municipal and agricultural tasks where multi-function performance and compact maneuverability are required. Suitable for site clearing, leveling, grading and loading. Universal quick coupler enables fast interchange between attachments. Hydraulic cylinders provide push, scrape, clamp and automatic discharge functions without tilting the bucket, improving cycle efficiency.

Key features

• 360° steering and rapid attachment change capability
• Multi-function 4-in-1 bucket: push, scrape, clamp, load
• Hydraulic cylinders enable automatic material discharge without tilting
• Designed for municipal and agricultural applications; suitable for confined workspaces
• Universal quick coupler for compatibility with multiple skid steer models

Product details

• Model (listed options): Sr07 / Sr08 / Sr10 / Sr12 / Sv10 / Sv12
• Warranty: One Year
• After-sales service: Engineers available to service machinery overseas; online support, video guidance and spare parts service listed
• Minimum Order Quantity: 1 Unit
• Delivery Time: In Stock (Within 7 days); Production (Within 15 to 20 days); Customization (negotiated delivery time)
• Shipping: Support Sea freight · Land freight · Air freight

Technical table
Item | Unit | XC760K.22.1A | XTSD84H
Weight | kg | 370 | 410
Length | mm | 985 | 985
Width | mm | 1900 | 2185
Height | mm | 710 | 710
Bucket Capacity | m³ | 0.5 | 0.6
Opening Angle | mm | 750 | 750
Compatible Models | - | SR07 / SR08 / SR10 / SR12 / SV10 / SV12 | SR07 / SR08 / SR10 / SR12 / SV10 / SV12

Product description (additional)
Engineered for site clearing, leveling, grading and loading operations. The universal quick coupler allows rapid interchange of attachments on skid steer loaders, while the integrated push/scrape/clamp/load functions increase on-site versatility and reduce the number of tool changes required for mixed tasks.

Specifications / technical characteristics

• Weight: 370.000 kg (listed)
• Bucket capacity: 0.5 m³ (primary spec)
• Compatible skid steer models: Sr07, Sr08, Sr10, Sr12, Sv10, Sv12
• Warranty: One Year
• After-sales: Engineers available for overseas service; online and video support; spare parts available
• Min Order Quantity: 1 Unit
• Delivery: In stock (within 7 days) or production lead time (15–20 days); customization lead time negotiable
• Shipping: Sea, land and air freight supported
