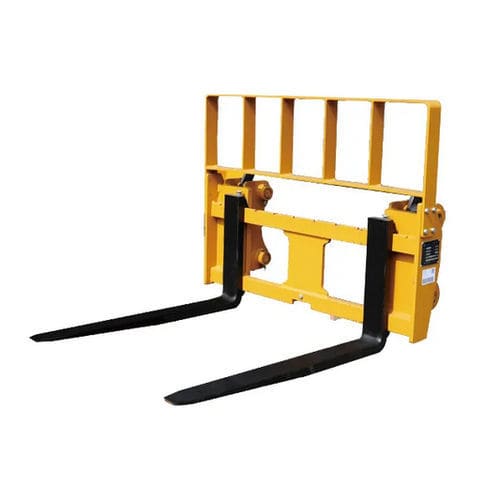

Lifting forklift truck attachment Xc8 series

multifunction

Product Overview
Combining digging and loading functions, this fork attachment reduces the need for multiple machines by providing a multi-functional solution for material handling on backhoe loaders. Designed for compatibility and quick changeover, it helps optimize jobsite workflows.

Features

• Fork length options: 1070 mm, 1220 mm, 1370 mm, 1520 mm, etc.
• Anti-loosening adjustable positioning pins enable rapid fork spacing adjustment and secure locking for safe operation.
• Compatible with multiple machine types, such as backhoe loaders and forklifts.

Model & Warranty

• Model: XC8-S2570 / XC8-C2570
• Warranty: One Year
• After-sales service: Engineers available for overseas support

Ordering & Delivery

• Minimum Order Quantity: 1 Unit
• Delivery Time: In Stock (within 7 days); Production (15–20 days); Customization (delivery time to be negotiated)
• Shipping: Sea freight · Land freight · Air freight supported
• Payment Method: Multiple payment methods supported (icons shown on product page)

Technical Specifications

• Compatible Models: XC8-S2570 / XC8-C2570
• Working Pressure: 11–14 MPa
• Weight: 266 kg (example); alternative value listed: 273 kg (depends on unit/model)
• Tine (fork) Length: options include 1070 mm, 1220 mm (table lists 1070 and 1220 for tine lengths)
• Overall Length (examples by unit): 1330 mm / 1480 mm
• Width (examples by unit): 1280 mm / 1280 mm
• Height (examples by unit): 1015 mm / 1015 mm
• Table references: example model columns referenced as XTHC10WA and XTHC12WA with corresponding weights and dimensions
