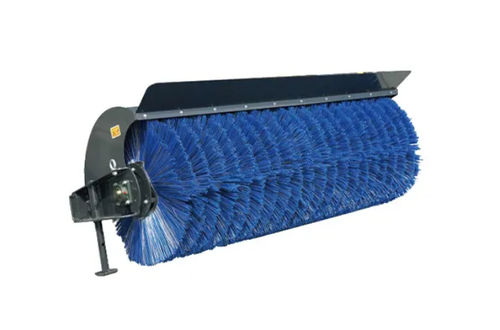

Paving block sweeper brush

Overview
360° steering and quick attachment changes. Designed for complex municipal and agricultural applications, the angle broom delivers multi-functional performance and efficient operation in confined spaces. It clears snow and debris from paved surfaces without damaging them. The snow removal roller brush can be steered left and right with an adjustable angle of ±30°. On impact the broom uses a spring relief system to negotiate obstacles while reducing shock to the carrier machine.

Models and general info

• Model options: SR10 / SR12 / SV10 / SV12 / TV10 / TV12
• Warranty: One Year
• Min Order Quantity: 1 Unit
• Delivery Time: In Stock (Within 7 days); Production (Within 15 to 20 days); Customization (negotiated delivery time)
• After-sales service: Engineers available for overseas service. Service types include online support (samples, technical specifications, operation manuals, spare parts), video support (application guidance, troubleshooting and maintenance), and overseas support (global after-sales team; additional fees may apply if not covered by contract).
• Shipping: Sea freight · Land freight · Air freight

Specification table
Item | Unit | XSQS72HA | XSQS84H
Specification | in | 72 | 84
Weight | kg | 520 | 560
Dimensions L×D×H | mm | 1610x2160x910 | 1610x2480x910
Operating Width D1 | mm | ≥1800 | ≥2120
Working Flow | L/min | 80-120 | 80-120
Working Pressure | Mpa | 16-21 | 16-21
Brush Diameter | mm | 810 | 810
Motor Displacement | ml/r | 310 | 310
Compatible Models | - | SR08 / SR10 / SR12 / SV10 / SV12 / TV10 / TV12 | SR08 / SR10 / SR12 / SV10 / SV12 / TV10 / TV12

Product images
Product images and a gallery are provided on the product page to illustrate configurations, mounting details and application examples.

Technical characteristics

• Weight: 520 kg (model-dependent values: 520 kg and 560 kg)
• Working Flow: 80–120 L/min
• Brush Diameter: 810 mm
• Motor Displacement: 310 ml/r
• Operating Width: ≥1800 mm or ≥2120 mm depending on model
• Working Pressure: 16–21 Mpa
• Dimensions L×D×H: 1610×2160×910 mm or 1610×2480×910 mm (model dependent)
• Compatible skid steer models: SR08, SR10, SR12, SV10, SV12, TV10, TV12
• Model options: SR10 / SR12 / SV10 / SV12 / TV10 / TV12
• Warranty: One Year
• Min Order Quantity: 1 Unit
