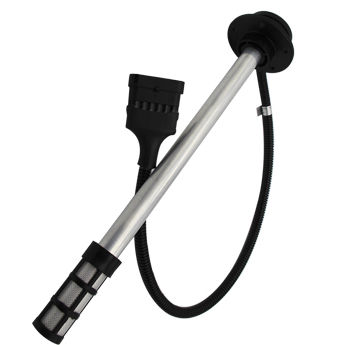

Capacitive level sensor GLTV7
for fuelfuel tankIP65

capacitive level sensor
capacitive level sensor
capacitive level sensor
capacitive level sensor
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for fuel
Applications
fuel tank
Other characteristics
IP65
Level range

Min.: 200 m (656'02")

Max.: 1,500 m (4921'03")

Process temperature

Min.: -40 °C (-40 °F)

Max.: 85 °C (185 °F)

Description

High accuracy, resolution ≤ 1 mm Wide voltage input to ensure that in each case without being limited by the input voltage The length of the sensor can be truncated External calibration device is convenient to adjust parameters SAE standard thread 5 holes, convenient and efficient Measuring good continuity, strong stability , the product of long service life Can fit the GPS tracking system, real-time monitoring of tank consumption and record Can directly replace the original car oil level sensor, connect the original car oil gauge. GLTV7 Capacitance fuel level sensor is used to continuously detect fuel level by measuring the capacitance variations as the liquid level changes, which can be easily shortened to fit the different tank depths. It can carry out real-time monitoring with GPS tracking system, can directly replace the fuel level sensor and connect the instruments in original car; With the characteristics of strong stability and long service life. ◆ Suitable for trucks, buses, fuel tank liquid level detection ◆ The yacht, the generator fuel tank measurement ◆ Diesel oil, biological diesel oil, gasoline, kerosene liquid level detection (cannot be used for conducting medium) ◆ Household car tank liquid level detection ◆ Large oil tankers fuel level measurement
