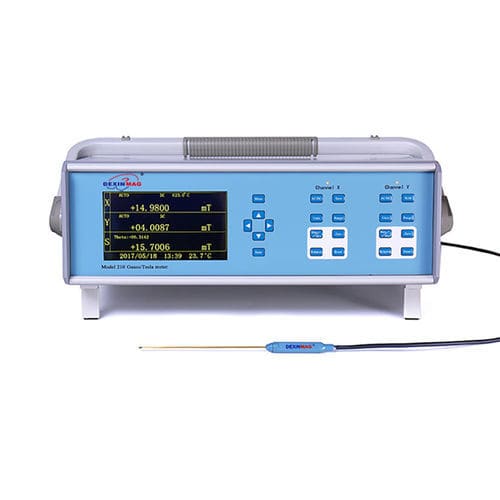

The DX-210 is a digital two-dimensional Gauss/Tesla meter designed for high-accuracy, high-resolution magnetic field measurement, data storage and graphical display. It supports two-dimensional probes and dual-channel/vector measurement modes and is intended for research institutes, universities and industrial R&D departments.

Features

• Bright 7" VGA color graphics with real-time plotting to visualize magnetic field distributions.
• Advanced 2D operational mode for material analysis and field mapping; supports 2D probes and dual-channel tests.
• High resolution and precision for detecting small variations in strong and weak magnetic fields.
• Large-capacity data storage (historical review by time); automatic and manual storage modes with configurable intervals.
• Real-time graphical test display with two-channel numerical and vector readings; max/min/peak/valley capture and interface locking.
• Full-menu operation with dedicated function keys for streamlined measurement workflows.
• Professional drawing software for charting stored data; data export via RS-232 for PC processing.
• Auto-zero, automatic/manual range selection, probe auto-calibration and auto memory modes.
• Analog monitoring output (BNC) for auxiliary automation and optional industrial output interfaces.

Main functions

• Measure two-dimensional spatial magnetic fields with high precision or perform dual-channel measurements.
• High-precision AC/DC magnetic field measurement with auto/manual range selection.
• Auto/manual storage up to 3000 data points; configurable automatic storage interval (1–60 s) plus manual/random storage and time-ordered review.
• Max/Min lock, peak capture and multiple lock settings for holding/locking/releasing readings.
• Auto-zero modes: relative zero (using Zero-Gauss calibrator) and geomagnetism elimination mode.
• Data communication via RS-232 and ability to generate high-precision charts with supplied software; analog output (BNC) for monitoring/automation.

DX-210 optional accessories

• Professional Gauss meter drawing/charting software (including database).
• Zero Gauss Chamber (Zero-Gauss calibrator).
• Serial port USB 2.0 converter.
• Probe fixing rack for positioning probes.

Technical specifications

• Model: DX-210 (Model-210 specifications).
• Display: 7" VGA color panel, 800 x 480 pixels.
• Resolution: 5 ¾-bit readings; basic resolution 0.0001 mT (0.1 mGs = 0.01 μT indicated in ranges).
• Range: (0.1 mG - 30G) / (1 mGs - 300Gs) / (0.01Gs - 3000Gs) / (0.1Gs - 30KG) — some ranges require probe change.
• Accuracy (DC): ±0.15% of reading, ±0.05% of range.
• Accuracy (AC): ±1% of reading.
• Frequency range (AC mode): 20 Hz to 50 kHz; DC mode supported.
• Analog output: ±3 V F.S.; connector: standard BNC.
• Communication: RS-232C, 9-pin D-sub connector for PC data output.
• Temperature coefficient: ±(0.03% ±1 count)/°C.
• Working temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C.
• Power supply: 200/240 V, 50–60 Hz.
• Probe options: multiple optional square, circular or custom probes; matched 2.5 mm 2D circular probe available.
• Additional functions: auto-zeroing, temperature compensation, date/time and brightness settings, threshold/alarm setting, communication baud-rate adjustment and working temperature display.
