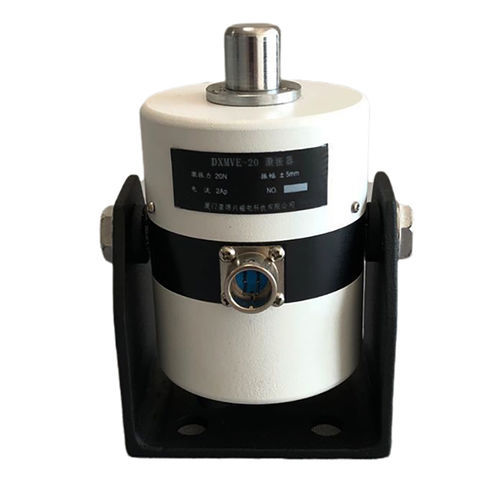

Electrodynamic shaker DXEV series

Product description
The DXEV series electromagnetic vibration exciter is an actuator whose output force is proportional to the current through its coil. It delivers fast response, large stroke and high linearity and is designed for straightforward installation and integration into industrial test stands and active vibration systems.

Applications

• Active vibration isolation and active buffering
• Vibration source simulation
• X-Y platforms and six-degree-of-freedom platforms
• Vibration testing for aircraft, rockets, automobiles, ships, trains, machine tools, bridges, dams and buildings
• Fatigue testing of parts and components; vibration aging treatment

Overview
The series is compact and lightweight, with high efficiency, low distortion and energy-saving operation. It is suitable for high-precision positioning tasks, high-performance vibration control and laboratory or field testing where linear force output and fast dynamic response are required.

Technical specifications

• Series name: DXEV series
• Models and parameters:
  • DXEV-20
    • Maximum exciting force (N): ≥20 N
    • Bandwidth range (Hz): 0-5000 Hz
    • Maximum amplitude (mm): +5 mm
    • Force constant (N/A): ≥8
    • Maximum peak current (A): 2.5 A
    • Working temperature: -30℃ - 70℃
    • Working humidity: ≤95% R.H
    • Weight (Kg): 1 Kg
    • Dimensions (mm diameter x height): Φ65 x 82.5
    • Optional power amplifier model: DXACP-20
  • DXEV-50
    • Maximum exciting force (N): ≥50 N
    • Bandwidth range (Hz): 0-3000 Hz
    • Maximum amplitude (mm): +5 mm
    • Force constant (N/A): ≥16
    • Maximum peak current (A): 3 A
    • Working temperature: -30℃ - 70℃
    • Working humidity: ≤95% R.H
    • Weight (Kg): 3.5 Kg
    • Dimensions (mm diameter x height): Φ109 x 133
    • Optional power amplifier model: DXACP-50
  • DXEV-200
    • Maximum exciting force (N): ≥200 N
    • Bandwidth range (Hz): 0-2000 Hz
    • Maximum amplitude (mm): ±10 mm
    • Force constant (N/A): ≥8
    • Maximum peak current (A): 25 A
    • Working temperature: -30℃ - 70℃
    • Working humidity: ≤95% R.H
    • Weight (Kg): 15.5 Kg
    • Dimensions (mm diameter x height): Φ190 x 175
    • Optional power amplifier model: DXACP-200C
  • DXEV-500
    • Maximum exciting force (N): ≥500 N
    • Bandwidth range (Hz): 0-2000 Hz
    • Maximum amplitude (mm): ±10 mm
    • Force constant (N/A): ≥16
    • Maximum peak current (A): 32 A
    • Working temperature: -30℃ - 70℃
    • Working humidity: ≤95% R.H
    • Weight (Kg): 28 Kg
    • Dimensions (mm diameter x height): Φ190 x 245
    • Optional power amplifier model: DXACP-500G
  • DXEV-1000
    • Maximum exciting force (N): ≥1000 N
    • Bandwidth range (Hz): 0-800 Hz
    • Maximum amplitude (mm): ±10 mm
    • Force constant (N/A): ≥16
    • Maximum peak current (A): 64 A
    • Working temperature: -30℃ - 70℃
    • Working humidity: ≤95% R.H
    • Weight (Kg): 88 Kg
    • Dimensions (mm diameter x height): Φ260 x 360
    • Optional power amplifier model: DXACP-1000
