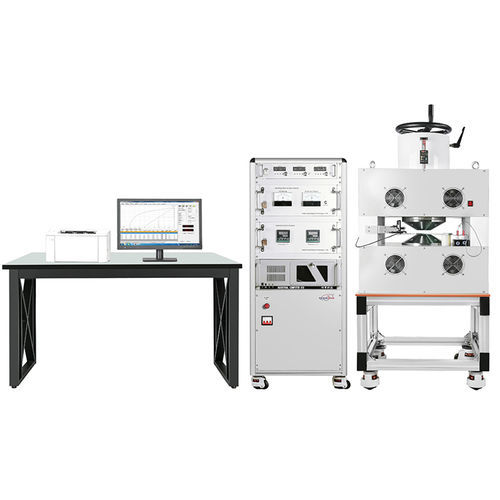

The Magnetically Hard Materials Measuring System is a permanent-magnet testing platform designed to measure magnetic performance parameters and to produce BH hysteresis loops and demagnetization curves for a wide range of permanent magnet materials.

Materials covered:

• Rare earth permanent magnet materials (e.g. NdFeB)
• Metal permanent magnet materials (e.g. AlNiCo, FeCrCo)
• Ferrite permanent magnet materials (e.g. barium ferrite, strontium ferrite)
• Other permanent magnet types (micro powder magnets, nano magnets, plastic magnets, machinable magnets)

Measured magnetic performance:

• Saturation magnetization field strength (Hmax)
• Remanence (Br)
• Coercive force (Hcb)
• Intrinsic coercive force (Hcj)
• Maximum energy product ((BH)max)
• Recovery permeability (μrec)
• Hysteresis loop and demagnetization curve

Parameters of magnetically hard materials measuring system (example: DX-2012H series)

• Electromagnet Model
  • DX-2012H130: DXT130
  • DX-2012H150: DXT150
  • DX-2012H200: DXT200
  • DX-2012H250: DXT250
• Test Power Supply
  • DX-2012H130: 2kW
  • DX-2012H150: 3kW
  • DX-2012H200: 4kW
  • DX-2012H250: 8kW
• Fluxmeter Configuration
  • DX-2012H130: One DX-210B
  • DX-2012H150: Two DX-210B
• Magnetometer
  • All listed variants: DX-210H
• Data Acquisition Card
  • PC6616
• Measurement Software
  • HMTest (partial functions) — some variants: HMTest (all functions)
• Computer and printer
  • Dell Dimension E-520n computer + HP1020 laser printer
• Standard Specimen
  • One AlNiCo standard sample supplied
• Fixed Coil
  • DX-2012H130: One B coil
  • DX-2012H150: One J coil
  • DX-2012H200: J coil + H coil
  • DX-2012H250: J coil + H coil
• Test Specimen Category
  • DX-2012H130: AlNiCo, Ferrite
  • DX-2012H150 / 200 / 250: AlNiCo, Ferrite, NdFeB (and for larger models also SmCo)
• Specimen Size (round sample examples)
  • DX-2012H130: Diameter 3–100 mm; Thickness 3–50 mm
  • DX-2012H150: General permanent magnetic 3–60 mm (H3 ~ 50 mm); Rare-earth 5–20 mm (H5 ~ 15 mm)
  • DX-2012H200: General permanent magnetic 3–90 mm (H3 ~ 50 mm); Rare-earth 5–30 mm (H5 ~ 20 mm)
  • DX-2012H250: General permanent magnetic 3–120 mm (H3 ~ 50 mm); Rare-earth 5–50 mm (H5 ~ 30 mm)

Caractéristiques / spécifications techniques:

• Manufacturer: Dexinmag (Xiamen Dexing Magnet Tech. Co., Ltd.)
• Product series / model: DX-2012H (variants: DX-2012H130, DX-2012H150, DX-2012H200, DX-2012H250)
• Primary measurement outputs: Br, Hcb, Hcj, (BH)max, Hmax, μrec, BH hysteresis loop, demagnetization curve
• Typical hardware components: electromagnet (DXT series), DX-210B fluxmeter(s), DX-210H magnetometer, PC6616 data acquisition card
• Control & analysis software: HMTest (partial/all functions depending on configuration)
• Includes: standard AlNiCo sample, fixed coils (B/J/H as configured), computer and printer (Dell + HP) in standard package
