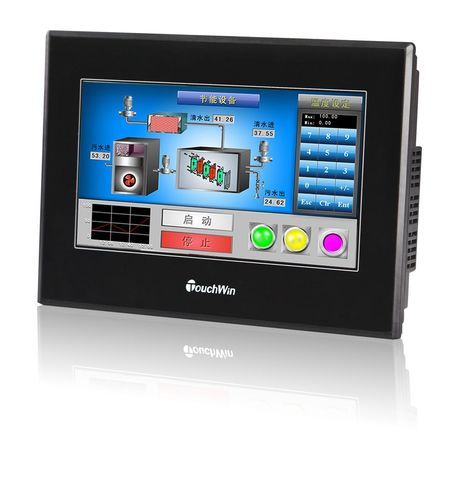

All-in-one HMI ZG series

resistive touch screenpanel-mountIP65

Overview
The ZG series integrated controller combines XD series PLC and TG series HMI functions in a single device. It provides RS232, RS485, USB-B and USB-A ports for program download, communication and data backup. Available with 4.3-inch or 7-inch touch displays, 16.77 million true-color support and 128MB screen capacity. Some advanced motion and high-speed I/O functions are model-dependent (ZG1 has reduced feature set).

Key features

• Integration of XD series PLC and TG series HMI functions
• Interfaces: RS232, RS485, USB-B, USB-A for downloading, communication and data backup
• Display options: 4.3-inch or 7-inch touch screen
• Color depth: 16.77 million true colors (24-bit)
• Screen memory: 128 MB
• Touch operation supported

Technical specifications

• I/O points: 20–30 points
• Instruction processing speed: 0.05 μs
• Interface types: RS232, RS485, USB-B, USB-A
• High-speed counting input: 3–4 channels (not supported on ZG1)
• High-speed pulse output: 2–4 axes, 100 kHz (not supported on ZG1)
• Motion control: linear and circular interpolation (ZGM support)
• Screen capacity: 128 MB
• Display: 4.3 / 7-inch touch; 16.77 million colors

Typical applications
Suitable for machine control, automated equipment, packaging and processing lines where an integrated PLC+HMI reduces panel space and simplifies wiring. Select higher-end ZG models for motion control and high-speed I/O requirements.
