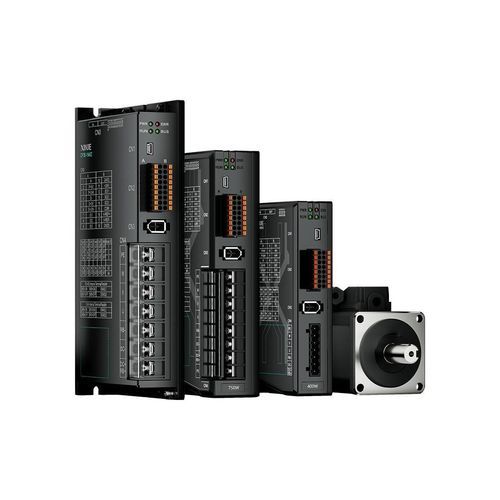

DC servo-drive DF3E series

CANopenModbusEtherCAT

Description
The DF3E series low-voltage servo drive features a compact, lightweight design with multiple I/O and communication interfaces. It supports CANopen, Modbus and EtherCAT communication, operates from low-voltage DC supply and integrates a 24V brake power output. Gain adjustment is performed in three steps to reduce commissioning time and simplify on-site tuning.

Product Features

• Innovative appearance - New exterior design with rich interfaces, compact footprint and lightweight body to meet AGV equipment installation requirements.
• Powerful functionality - Multiple control modes supported and built-in 24V brake output with alarm-synchronous braking to satisfy operational demands.
• Multiple communication options - Supports EtherCAT, CANopen and MODBUS to cover various network topologies and integration needs.
• Convenient commissioning - Three-step gain adjustment significantly reduces equipment debugging time and improves field commissioning efficiency.

Technical specifications

• Series name: DF3E
• Product type: Low-voltage servo driver
• Design: Compact, lightweight
• Interfaces: Multiple I/O and communication interfaces
• Power supply: Low-voltage DC
• Brake output: Built-in 24V brake power output
• Control modes: Supports multiple control modes
• Brake behavior: Alarm-synchronous braking supported
• Communication protocols: EtherCAT, CANopen, MODBUS
• Debugging: Gain adjustment in three steps
• Target application: Designed for AGV industry equipment installation requirements
