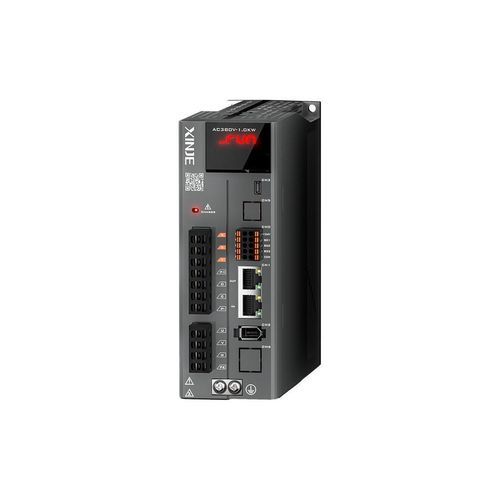

AC servo-drive DS5C1 series

EtherCATEthernetwith Ethernet interface

Product Overview
Adopting EtherCAT bus technology, the DS5C1 servo driver offers sub-millisecond node communication (communication cycle < 1 ms for up to 32 axes), two high-speed probe functions and distributed clock for precise synchronization. Standard RJ45 communication and European-style plug-in terminals simplify wiring and installation.

Key Features

• Compact design: new exterior structure reduces size by approximately 41% versus previous generation.
• Networked commissioning: supports host-based network debugging with one-step parameter download to configure multiple servo devices.
• Plug-in wiring: European-style plug-in terminals for faster connection and reduced wiring time.
• Built-in dynamic braking: standard on 1 kW–3 kW models.
• Motor compatibility: compatible with MS5/MS6 series motors; supports 17-bit magnetic and 23-bit optical encoders.
• Standard RJ45 interface for efficient cabling and installation convenience.

Additional Notes
The DS5C1 integrates high-speed probe functions and distributed clock synchronization to support efficient multi-axis EtherCAT applications, and streamlines network-based debugging to simplify commissioning and parameter configuration.

Technical specifications

• Communication: EtherCAT bus technology; communication cycle < 1 ms (32 axes).
• Synchronization: Distributed clock for precise synchronization.
• Interfaces: Standard RJ45 communication interface; European-style plug-in terminals.
• Debugging: Supports host-based network debugging with one-step parameter download/configuration.
• Physical size: New structural design, size reduced by ~41% vs previous generation.
• Dynamic braking: Standard on DS5C1 series 1 kW–3 kW models.
• Motor compatibility: Compatible with MS5/MS6 series motors.
• Encoder support: 17-bit magnetic encoder; 23-bit optical encoder.
• Probe functions: Two high-speed probe functions.
