The DS5P PROFINET servo driver is the first Xinje servo drive to support the PROFINET bus. It delivers precise positioning, short synchronization cycles, flexible on-site wiring and simplified maintenance for multi-axis, high-speed automation. Typical sectors include 3C electronics, lithium battery, automotive, logistics, photovoltaic and filling.

Key features

• Compliant with PROFIdrive industry standard for high compatibility and interoperability.
• Supports PROFINET V2.3 and PROFIdrive profiles AC1, AC3, AC4.
• Supports RT and IRT real-time modes; RT channel cycle up to 4 ms; IRT cycle period up to 1 ms.
• Minimum synchronization period 250 μs with synchronization jitter < 1 μs for tight multi-axis coordination.
• Dual 100 Mbps full-duplex Ethernet ports; both ports configurable as IN/OUT for flexible wiring and topologies (linear, star, tree, ring).
• Real-time transmission of user/process and diagnostic data over a single cable for fast integration with control systems.
• Supports common protocols and communication methods (PTI, Profinet, Modbus RTU).

Other information shown on page

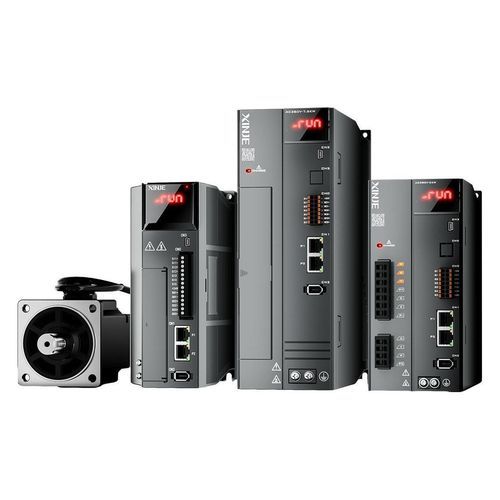

• Product images and an illustration gallery are available on the page.
• Related documents and downloads (software, catalogs, configuration files and certificates) are provided in the Related Documents section.

Technical specifications

• Commercial designation: DS5P PROFINET servo driver (series DS5P).
• PROFINET version: V2.3.
• PROFIdrive support: AC1, AC3, AC4.
• Real-time modes: RT and IRT supported.
• RT channel cycle: up to 4 ms.
• IRT cycle period: up to 1 ms.
• Ethernet: dual 100 Mbps full-duplex ports (both can be IN/OUT).
• Supported topologies: linear, star, tree, ring.
• Minimum synchronization period: 250 μs.
• Synchronization jitter: < 1 μs.
• Supported communication methods/protocols: PTI, Profinet, Modbus RTU.
• Typical application sectors: 3C electronics, lithium battery, automotive, logistics, photovoltaic, filling.
• Related optional motor/motion characteristics: high protection level B3 motor available; optional 17-bit and 23-bit absolute encoders; standard oil-sealed shaft end; motor protection level up to IP67.
