Chain sling

2-pointsteel

Product overview

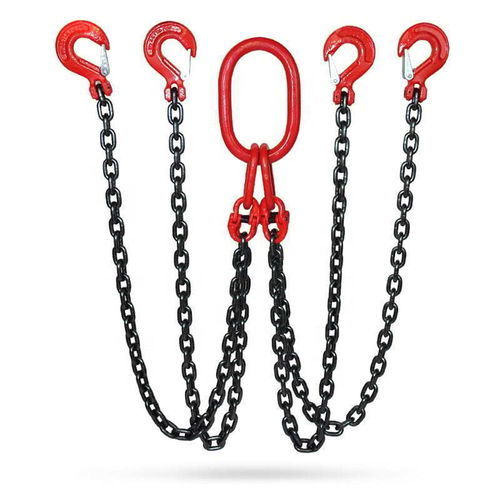

• Grade 80 DOS Chain Sling - Double Leg with Oblong Master Link on top and Sling Hooks with Latch on bottom
• Sling style options and individualized serial number available
• Chain size & grade, exact length of the sling and working load limit are specified per order

Introduction

• S = Sling Leg
• T = Triple Leg
• S = Sling Hook (w/latch)
• SL = Self Locking (Safety) Hook
• F = Foundry Hook
• D = Double Leg
• Q = Quad Leg
• G = Grab Hook
• O = Oblong Master Link

Certification & traceability

• The chain sling will be provided with a written certification. The serial number on the tag will coordinate with the certificate and the sales order number to ensure complete traceability.

Tags / product keywords

• DOS Chain Sling
• lifting chain
• Grade 80 chain
• Grade 100 chain
• black chain
• 4 SF
• 6 SF
• g80 chain

Parameter
Design Factor | 1-Leg Sling (90°) | 1-Leg Sling (60°) | 1-Leg Sling (45°) | 1-Leg Sling (30°) | 2-Leg Sling (60°) | 2-Leg Sling (45°) | 2-Leg Sling (30°)
Load Factor | 1 | 1.7 | 1.4 | 1 | 2.6 | 2.1 | 1.45
7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500

Standards

• Name: Grade 80 DOS Chain Sling – Double Leg with Oblong Master Link on Top and Sling Hooks with Latch on Bottom
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical characteristics / specifications

• Product family: DOS Chain Sling
• Grade: Grade 80 (options referenced to Grade 100 in tags)
• Configuration: Double leg (other configurations available: single, triple, quad)
• Top fitting: Oblong master link
• Bottom fitting: Sling hooks with latch (other hook types available: self locking, foundry, grab)
• Sling identification: Individualized serial number on tag for traceability
• Certification: Written certification supplied with sling
• Available chain diameters: from 7/32" up to 1-1/4" (values and load capacities shown in Parameter table)
• Load factors by angle and leg count as listed in Parameter table
• Minimum order quantity: 100 meters
• Packing: Carton plus steel pallet
