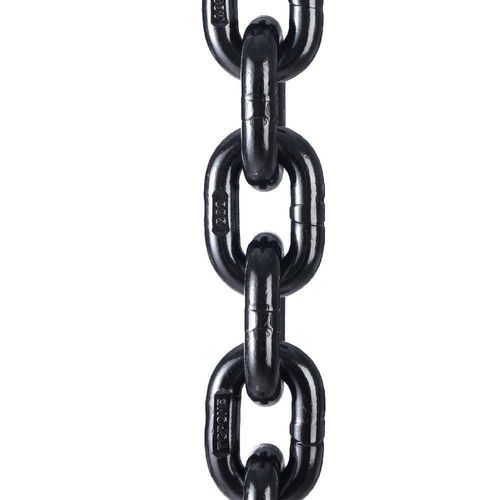

Steel lifting chain RD90L

alloyheavy-dutycorrosion-resistant

Product overview
Compliant with EN818-2. Manufactured from RD90L alloy steel with mechanical properties improved compared to standard Grade 80 (G80) chains. Designed for lifting and rigging applications where strict performance and traceability are required.

Introduction

• Material: RD90L alloy steel.
• Surface treatments available: self-color, polishing, black, plastic coating, hot-dip galvanized, etc.
• Safety factor: 4:1.
• Product marking: G80 or as required by client.
• Non-standard or custom chains manufactured to client specifications.

Parameters
Chain Ø mm | Inch | Tolerance (mm) | INSIDE LENGTH (mm) | Tolerance | INSIDE WIDTH Min (mm) | OUTSIDE WIDTH Max (mm) | Weight (Kg/m) | W.L.L. (Kg)

• 6 | 1/4 | ±0.24 | 18 | ±0.5 | 7.8 | 22.2 | 0.8 | 1120
• 7 | 9/32 | ±0.28 | 21 | ±0.6 | 9.1 | 25.9 | 1.1 | 1500
• 8 | 5/16 | ±0.32 | 24 | ±0.7 | 10.4 | 29.6 | 1.4 | 2000
• 10 | 3/8 | ±0.40 | 30 | ±0.9 | 13.0 | 37.0 | 2.2 | 3150
• 13 | 1/2 | ±0.52 | 39 | ±1.2 | 16.9 | 48.1 | 3.8 | 5300
• 16 | 5/8 | ±0.64 | 48 | ±1.4 | 20.8 | 59.2 | 5.7 | 8000
• 20 | 3/4 | ±1.00 | 60 | ±1.8 | 26.0 | 74.0 | 9.0 | 12500
• 22 | 7/8 | ±1.10 | 66 | ±2.0 | 28.6 | 81.4 | 10.9 | 15000
• 26 | 1 | ±1.30 | 78 | ±2.3 | 33.8 | 96.2 | 15.2 | 21200
• 32 | 1 1/4 | ±1.60 | 96 | ±2.9 | 41.6 | 118.0 | 23.0 | 31500

Standards & Packaging

• Standard: EN818-2 / Grade 80 alloy chain / Alloy steel chain Grade 80
• Minimum order quantity (MOQ): 100 meters
• Packaging: carton + steel pallet

Technical specifications

• Material: RD90L alloy steel
• Compliance: EN818-2
• Safety factor: 4:1
• Available surface treatments: self-color, polishing, black, plastic coating, hot-dip galvanized, etc.
• Product marking: G80 or per client requirement
• Custom/non-standard manufacturing available
• Minimum order: 100 meters
• Packaging: carton + steel pallet
• Note: Surface treatments can affect the mechanical properties of the chain; select treatment based on application requirements.
