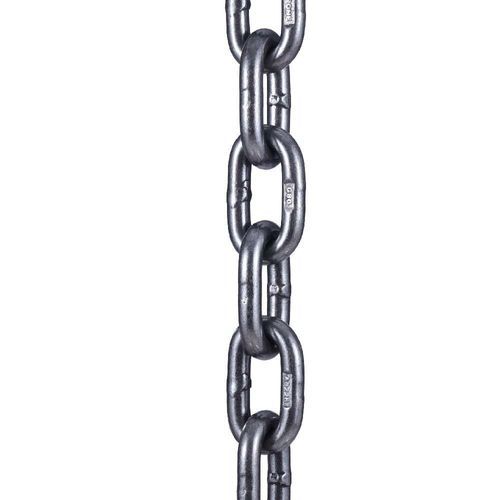

Alloy lifting chain Grade 80

lashingcorrosion-resistantzinc-plated

Product Description
Grade 80 Tow Chain is a heat-treated alloy steel chain designed for high-strength overhead lifting, tie-down and towing applications. It is the most economical of the chain grades suitable for overhead lifting (Grade 80, Grade 100, Grade 120). The chain is tested throughout the manufacturing process and meets or exceeds NACM, ASTM and OSHA specifications. Available in full drums, half drums, cut-by-the-foot lengths and tie-down assemblies. Grade 80 lifting slings are also available.

Features and Benefits

• Produced from high-quality alloy steel
• Special induction heat treatment to maximize strength and elongation characteristics
• Finish: black armour coat (electro galvanization referenced in standards)
• Meets or exceeds NACM & ASTM standards
• Approved for overhead lifting

Parameters
Grade of Chain: NACM (National Association of Chain Manufacturers) & ASTM classify chains by grade. Higher grades provide higher working load limits for the same chain size.
Working Load Limit (WLL): Maximum working load that should be applied in direct tension to an undamaged straight length of chain.
Proof Test: Minimum tensile force applied during manufacturing as an integrity test; not to be used as a criterion for service or design.
Minimum Breaking Force: Minimum tensile force at which chain samples broke under controlled testing during manufacture; not a service guarantee.
Overhead Lifting: Lifting that would suspend a load above personnel or property, where dropping the load could cause injury or damage.

Technical Table
Chain Size Inch | Chain Size MM | Working Load Limit (lbs) | Weight Per Foot (lbs) | Material Size Inch | Inside Length Inch | Inside Length MM | Inside Width Inch | Inside Width MM
9/32" | 9 | 3,500 | 0.72 | 0.28" | 0.88" | 22 | 0.41" | 10
5/16" | 8 | 4,500 | 1.06 | 0.33" | 1.02" | 26 | 0.48" | 12
3/8" | 10 | 7,100 | 1.50 | 0.40" | 1.22" | 31 | 0.57" | 14
1/2" | 13 | 12,000 | 2.61 | 0.52" | 1.56" | 40 | 0.75" | 20
5/8" | 16 | 18,100 | 3.61 | 0.63" | 1.93" | 19 | 0.92" | 23
3/4" | 20 | 28,300 | 6.21 | 0.79" | 2.36" | 60 | 1.02" | 26
7/8" | 22 | 34,162 | 7.17 | 0.87" | 2.60" | 66 | 1.14" | 29
1" | 26 | 47,606 | 10.4 | 1.02" | 3.07" | 78 | 1.34" | 34
1-1/4" | 32 | 72,300 | 15.5 | 1.25" | 3.50" | 89 | 1.75" | 44

Standards
Name: Grade 80 Alloy Steel NACM96 Standard Electro Galvanized Tow Link Chain
MOQ: 100 Meters
Package: Carton + Steel Pallet

Technical Specifications

• Material: High-quality alloy steel (Grade 80 alloy)
• Heat treatment: Special induction heat treatment to maximize strength and elongation
• Finish: Black armour coat (electro galvanization referenced in standards)
• Standards & approvals: Meets or exceeds NACM, ASTM, and OSHA specifications; approved for overhead lifting
• Available forms: Full drums, half drums, cut-by-the-foot, tie-down assemblies and related Grade 80 lifting slings
• Chain size range: 9/32" to 1-1/4" (approx. 9 mm to 32 mm)
• Working Load Limit (WLL) range: 3,500 lbs to 72,300 lbs (depending on chain size)
• Typical weight per foot range: 0.72 lbs to 15.5 lbs
• Minimum order quantity: 100 meters
• Packaging: Carton plus steel pallet
