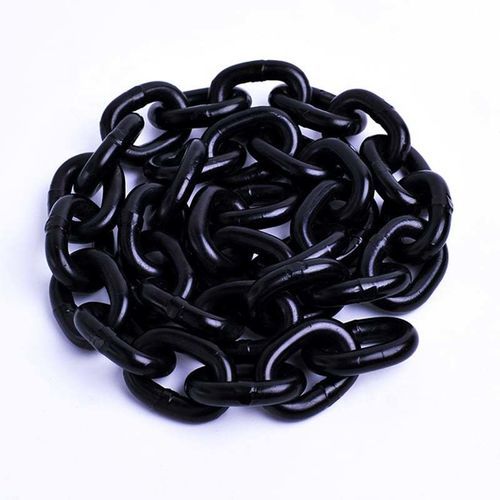

Steel alloy lifting chain Grade 100

high strength steelhigh-strengthfor heavy loads

Overview 16 mm Grade 100 chains are manufactured from high-strength alloy steel and undergo comprehensive testing during production. Each 16 mm Grade 100 chain is proof tested to twice the Working Load Limit (WLL) and has a minimum breaking strength of four times the WLL. The product meets or exceeds applicable OSHA, NACM and ASTM standards. Certificates are available free of charge upon request.

Introduction 16 mm Grade 100 chains are specifically designed and approved for overhead lifting applications. As a premium high-strength alloy chain, Grade 100 provides approximately a 20% increase in WLL compared with a comparable Grade 80 chain, enabling size reduction for a given load requirement. Grade 100 chains are also referenced as Grade 10, System 10 or Spectrum 10.

Parameter

• Grade of Chain: NACM and ASTM classifications determine chain grade; higher grades deliver higher WLL for the same chain size.
• Working Load Limit (WLL): The maximum load that should be applied in direct tension to an undamaged straight length of chain.
• Proof Test: The manufacturing integrity test force applied in direct tension; chains are proof tested to 2x WLL. Proof test results are not to be used as design or service criteria.
• Minimum Breaking Force: The minimum tensile force at which a sample chain segment breaks during testing; typically 4x WLL for these chains. Breaking strengths are manufacturer acceptance tests and not design criteria.
• Overhead Lifting: Lifting operations that elevate a freely suspended load to a position where dropping the load could cause injury or damage; Grade 100 chains are approved for overhead lifting.

Table - Chain Sizes & Parameters
Chain Size Inch | Chain Size MM | Working Load Limit (lbs) | Weight Per Foot (lbs) | Material Size Inch | Inside Length Inch | Inside Length MM | Inside Width Inch | Inside Width MM
7/32" | 6 | 3,100 | 0.54 | 0.25" | 0.71" | 18 | 0.38" | 7.95
9/32" | 7 | 4,300 | 0.73 | 0.275" | 0.88" | 22 | 0.41" | 10
5/16" | 8 | 5,700 | 1.06 | 0.330" | 1.02" | 26 | 0.49" | 13
3/8" | 10 | 8,800 | 1.52 | 0.397" | 1.22" | 31 | 0.57" | 14
1/2" | 13 | 15,000 | 2.72 | 0.52" | 1.56" | 40 | 0.75" | 20
5/8" | 16 | 22,600 | 3.72 | 0.63" | 1.93" | 49 | 0.92" | 23
3/4" | 20 | 35,300 | 5.78 | 0.787" | 2.44" | 62 | 1.008" | 25
7/8" | 22 | 42,700 | 7.32 | 0.866" | 2.59" | 65 | 1.161" | 29
1" | 26 | 59,700 | 10.21 | 1.024" | 3.07" | 78 | 1.378" | 35
1 1/4" | 32 | 90,400 | 15.45 | 1.26" | 3.78" | 96 | 1.69" | 43

Standards

• Standard: 16 mm Grade 100 Chains
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical specifications

• Brand: TOPONE Chain
• Series / Denomination: Grade 100 Chain
• Material: High-quality alloy steel (premium high strength alloy)
• Design / Use: Specifically designed and approved for overhead lifting applications
• Proof Test: Proof tested to twice the WLL; 100% proof tested during manufacture
• Minimum Breaking Strength: Minimum break strength is four times the WLL
• Performance vs Grade 80: Approximately 20% increase in WLL over a similar size Grade 80 chain
• Alternate Names: Grade 10, System 10, Spectrum 10
• Example product-specific data (16 mm / 5/8"): Chain size 16 mm; Working Load Limit 22,600 lbs; Weight per foot 3.72 lbs; Material size 0.63"; Inside length 1.93" (49 mm); Inside width 0.92" (23 mm)
• Certifications: Meets or exceeds OSHA, NACM and ASTM specification requirements; certificates available upon request
• MOQ: 100 Meters
• Packaging: Carton + Steel Pallet
