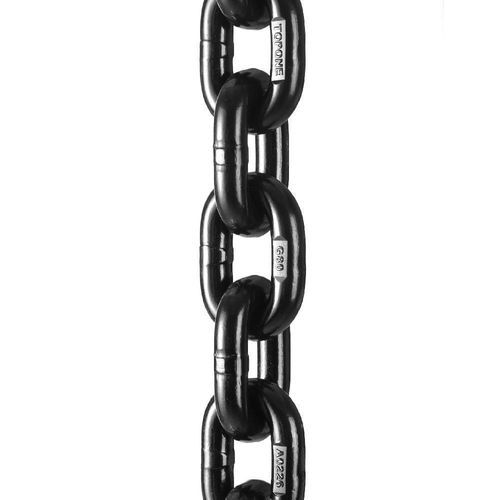

Steel lifting chain Grade 80

galvanised steelalloyhigh strength steel

Introduction
Grade 80 alloy chain (G80) is engineered for demanding overhead lifting and rigging applications. Manufactured from high-strength alloy steel, it meets NACM/ASTM classifications and is commonly specified for load binding, towing and overhead lifting when fitted and certified for such use. Binder chains with clevis grab hooks for flatbed trailers are not recommended for overhead lifting unless specifically certified.

Applications

• Industrial lifting and rigging
• Construction and heavy equipment handling
• Transport, towing and load securement
• Logging and material handling

General Options

• Diameter range: 6 mm to 45 mm
• Surface treatments: self-colour, polished, black, plastic coating, hot-dip galvanized, etc.

Product Features

• Material: high-strength alloy steel (Grade 80).
• Surface finish options to suit environment and corrosion requirements.
• Safety factor: 4:1.
• Marking: G80 or custom marking per client request.
• Custom (non-standard) chain manufacture available to client specifications.

Parameter
Grade of Chain: Classified to NACM and ASTM standards; higher grade indicates higher working load limit for the same nominal size.
Working Load Limit (WLL): Rated safe load in direct tension for an undamaged straight chain.
Proof Test: Manufacturing integrity test force; not to be used as a design/service criterion.
Minimum Breaking Force: Manufacturer acceptance test result; not to be used for design/service calculations.
Overhead Lifting: Raising a freely suspended load where a dropped load could cause injury or damage — chains used must be certified for overhead lifting.

Size Table
Size (MM) | +/-MM | D (MM) | +/-MM | A (MM) | +/-MM | Working Load (KG) | Test Load (N) | Breaking Load (N) | Weight Per M (KG)
3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15
4 | 0.5 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27
5 | 0.5 | 35 | 1.8 | 20 | 1.0 | 160 | 3150 | 10000 | 0.43
6 | 0.5 | 42 | 2.0 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63
7 | 0.5 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86
8 | 0.5 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.10
9 | 0.5 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41
10 | 1.0 | 65 | 3.2 | 40 | 2.0 | 630 | 12500 | 40000 | 1.75
11 | 1.0 | 72 | 3.4 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11
12 | 1.0 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55
13 | 1.0 | 82 | 4.0 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95
16 | 1.0 | 100 | 5.0 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45
18 | 1.0 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65
19 | 1.0 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25
20 | 1.0 | 120 | 6.0 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.00
22 | 1.0 | 127 | 6.0 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55
25 | 1.0 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.90
28 | 1.0 | 152 | 7.0 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.90
32 | 1.0 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.20

Standards & Packaging
Standard: Grade 80 Alloy Chain / Alloy Steel Chain Grade 80.
MOQ: 100 Meters.
Package: Carton + Steel Pallet.

Characteristics / Technical specifications

• Material: high-strength alloy steel (Grade 80).
• Diameter range available: 6 mm to 45 mm.
• Surface treatments available: self-colour, polishing, black, plastic coating, hot-dip galvanized, etc.
• Safety Factor: 4:1.
• Marking: G80 or as requested by client.
• WLL, Proof Test and Minimum Breaking Force values are specified in the parameter section and size table above.
• MOQ: 100 meters; Packaging: carton plus steel pallet.
