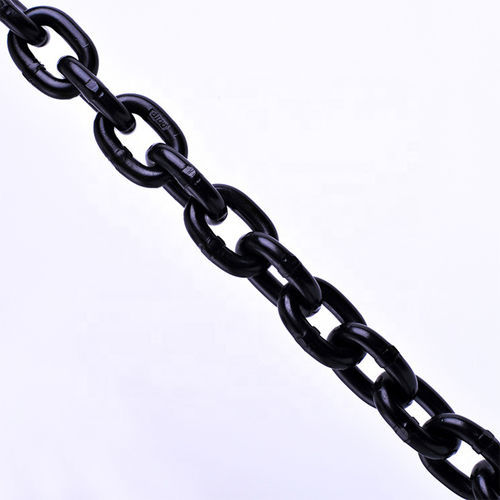

Steel lifting chain Grade 100

alloyhigh strength steelhigh-strength

Product Overview
13mm Grade 100 lifting chains are manufactured from high-strength alloy steel. Each 13mm Grade 100 chain is proof tested during the manufacturing process to 2× the Working Load Limit (WLL) with a minimum breaking strength of 4× WLL. These chains meet or exceed OSHA, government, NACM and ASTM specifications. Proof test certificates available on request.

Introduction
13mm Grade 100 chains are engineered for overhead lifting applications. Compared with equivalent Grade 80 chain, Grade 100 provides approximately 20% higher WLL, allowing reductions in chain size for the same load. Also referenced as Grade 10, System 10, or Spectrum 10, these chains are approved for overhead lifting.

Parameters

• Grade of chain: NACM and ASTM classify chains by grade; higher grades yield higher WLL for the same nominal size.
• Working Load Limit (WLL): Maximum allowable load in direct tension on an undamaged straight length of chain.
• Proof test: Manufacturing tensile test performed with a continuously increasing direct tension; used to verify manufacturing integrity, not for service design.
• Minimum breaking force: Minimum tensile force recorded during destructive testing; this is a manufacturing acceptance metric and not a design criterion.
• Overhead lifting: Lifting that suspends a load such that its unintended release could cause injury or damage.

Technical Data Table
Chain Size Inch | Chain Size MM | Working Load Limit (lbs) | Weight Per Foot (lbs) | Material Size Inch | Inside Length Inch | Inside Length MM | Inside Width Inch | Inside Width MM
7/32" | 6 | 3,100 | 0.54 | 0.25" | 0.71" | 18 | 0.38" | 7.95
9/32" | 7 | 4,300 | 0.73 | 0.275" | 0.88" | 22 | 0.41" | 10
5/16" | 8 | 5,700 | 1.06 | 0.330" | 1.02" | 26 | 0.49" | 13
3/8" | 10 | 8,800 | 1.52 | 0.397" | 1.22" | 31 | 0.57" | 14
1/2" | 13 | 15,000 | 2.72 | 0.52" | 1.56" | 40 | 0.75" | 20
5/8" | 16 | 22,600 | 3.72 | 0.63" | 1.93" | 49 | 0.92" | 23
3/4" | 20 | 35,300 | 5.78 | 0.787" | 2.44" | 62 | 1.008" | 25
7/8" | 22 | 42,700 | 7.32 | 0.866" | 2.59" | 65 | 1.161" | 29
1" | 26 | 59,700 | 10.21 | 1.024" | 3.07" | 78 | 1.378" | 35
1 1/4" | 32 | 90,400 | 15.45 | 1.26" | 3.78" | 96 | 1.69" | 43

Standards

• Standard: 13mm Grade 100 Chains
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical specifications

• Series: Grade 100 Chain
• Commercial name: 13mm Grade 100 Chains
• Material: High-strength alloy steel
• Proof tested to 2× WLL
• Minimum breaking strength: 4× WLL (manufacturer test)
• Approved for overhead lifting applications
• WLL: values listed in the technical table above (lbs)
• Weight per foot: values listed in the technical table above (lbs)
• Inside length/width and material size: values listed in the technical table above (inches/mm)
• Performance note: ~20% increase in WLL vs equivalent Grade 80 chain
• Also referred to as: Grade 10, System 10, Spectrum 10
• Certifications: Proof testing and certificates available
• MOQ: 100 Meters; Packaging: Carton + Steel Pallet
