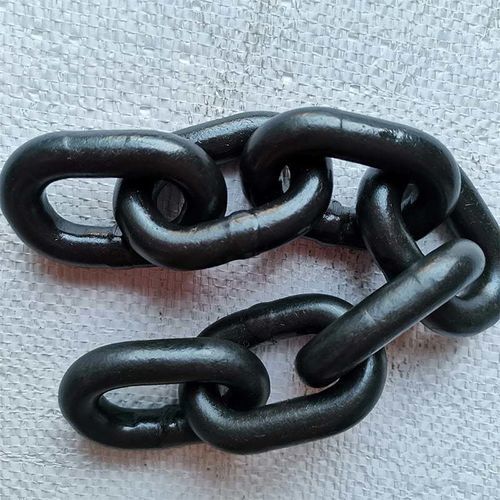

Coated lifting chain Grade 80

steelalloypowder-coated steel

Product Overview
Grade 80 chain supplied on full drums for industrial lifting and load securement applications. Grade 80 chain is typically finished with a black armour coat; other finishes available include Electro Galvanized, Powder Coated, Hot Dipped Galvanized and Silver Shield.

Features and Benefits

• Produced from high-quality alloy steel
• Special induction heat treatment to maximize strength and improve elongation characteristics
• Typical finish: black armour coat (other finishes available: Electro Galvanized, Powder Coated, Hot Dipped Galvanized, Silver Shield)
• Meets or exceeds NACM & ASTM standards
• Approved for overhead lifting applications

Parameters
Grade of Chain: NACM (National Association of Chain Manufacturers) & ASTM classify chains by grade; higher grades yield higher working load limits for the same chain size.
Working Load Limit (WLL): The maximum working load to be applied in direct tension to an undamaged straight length of chain.
Proof Test: The minimum tensile force applied during manufacturing as an integrity test; not to be used for service or design criteria.
Minimum Breaking Force: The minimum force at which the chain broke during manufacturer testing; this is an acceptance test and not a service/design criterion.
Overhead Lifting: Lifting that positions a freely suspended load where dropping it could cause personnel injury or property damage.

Table - Chain Sizes and Specifications
Chain Size Inch | Chain Size MM | Working Load Limit (lbs) | Weight Per Foot (lbs) | Material Size Inch | Inside Length Inch | Inside Length MM | Inside Width Inch | Inside Width MM
9/32" | 7 | 3,500 | 0.72 | 0.28" | 0.88" | 22 | 0.41" | 10
5/16" | 8 | 4,500 | 1.06 | 0.33" | 1.02" | 26 | 0.48" | 12
3/8" | 10 | 7,100 | 1.50 | 0.40" | 1.22" | 31 | 0.57" | 14
1/2" | 13 | 12,000 | 2.61 | 0.52" | 1.56" | 40 | 0.75" | 20
5/8" | 16 | 18,100 | 3.61 | 0.63" | 1.93" | 49 | 0.92" | 23
3/4" | 20 | 28,300 | 6.21 | 0.79" | 2.36" | 60 | 1.02" | 26
7/8" | 22 | 34,162 | 7.17 | 0.87" | 2.60" | 66 | 1.14" | 29
1" | 26 | 47,606 | 10.4 | 1.02" | 3.07" | 78 | 1.34" | 34
1-1/4" | 32 | 72,300 | 15.5 | 1.25" | 3.50" | 89 | 1.75" | 44

Standards
Name: Grade 80 Chain Full Drum
MOQ: 100 Meters
Package: Carton + Steel Pallet

Technical specifications

• Product name: Grade 80 Chain Full Drum
• Material: High-quality alloy steel
• Heat treatment: Special induction heat treatment to maximize strength and elongation
• Typical finish: Black armour coat (other finishes: Electro Galvanized, Powder Coated, Hot Dipped Galvanized, Silver Shield)
• Standards: Meets or exceeds NACM & ASTM
• Approved for overhead lifting
• MOQ: 100 Meters
• Package: Carton + Steel Pallet
• Available chain sizes and corresponding WLL, weight per foot and internal dimensions listed in the table above
