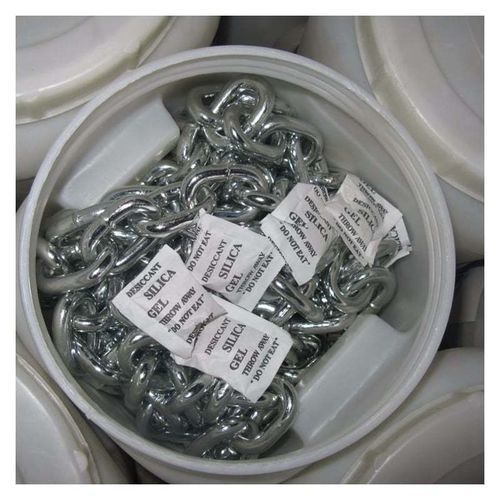

Galvanized handling chain Windlass Grade 30

carbon steelcorrosion-resistantwelded

Overview
Windlass Grade 30 half-drum chain manufactured as proof coil (electronically welded). Hot-dip galvanized finish for improved corrosion protection. Meets or exceeds NACM and ASTM references. Not for overhead lifting. Never exceed the published Working Load Limit (WLL).

Introduction

• Grade 30 proof coil chain is produced from low-carbon steel and serves as a general utility chain for marine windlasses, anchor handling, mooring and other deck applications.
• Caution: Do NOT use for overhead lifting or human suspension.
• DO NOT exceed the published Working Load Limit (WLL).

Parameters

• Grade of chain: Classification per NACM (National Association of Chain Manufacturers) and ASTM (American Society for Testing and Materials); higher grades provide greater WLL for the same diameter.
• Working Load Limit (WLL): The maximum recommended load in direct tension for an undamaged straight length of chain.
• Proof Test: The manufacturing test force applied under steadily increasing direct tension to verify integrity. Proof test values are manufacturing acceptance tests and are not design criteria for service use.
• Minimum Breaking Force (MBF): The minimum tensile force at which the chain has been observed to fail during factory testing. MBF is an acceptance test and shall not be used as a service design parameter.
• Overhead lifting: Any lifting operation that could place a suspended load over personnel or equipment; this chain is NOT rated for such use.

Standards

• Standard: Windlass Grade 30 Half Drum Chain Domestic Proof Coil ISO
• MOQ: 100 meters
• Packaging: Carton + steel pallet

Technical specifications

• Product type: Windlass half-drum chain (proof coil)
• Grade: Grade 30
• Material: Low carbon steel
• Manufacture: Electronically welded proof coil chain
• Finish: Hot-dip galvanized for corrosion protection in marine environments
• Standards referenced: NACM, ASTM
• Intended uses: windlass/anchor handling, mooring, general deck utility
• Restriction: Not for overhead lifting; never exceed published WLL
• Quality tests: Proof test and Minimum Breaking Force (manufacturer acceptance tests)
• MOQ: 100 meters
• Packaging: Carton plus steel pallet
