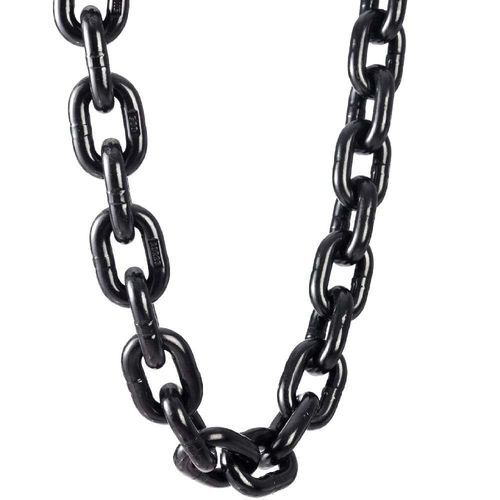

Steel lifting chain Grade 80

alloyheavy-dutycorrosion-resistant

Product Overview
Grade 80 lifting chain (load chain) is manufactured from alloy steel using advanced production lines to deliver high tensile strength for industrial lifting applications. Produced to ISO3077, EN818 and AS2321 standards, the G80 chain meets a 4:1 safety factor and a 2.5× tested loading capacity. Available surface finishes include self-coloured, black oxide, electro-galvanized, hot-dip galvanized, powder coating and painting to suit humid, acidic or alkaline environments.

Applications

• Chain blocks, lever hoists and electric hoists
• Cranes, winches, lifting slings and industrial lifting operations
• Precision calibrated load chains and heavy-duty lifting chains

Key Features / Details

• Material: alloy steel (examples: 20Mn2, 20Mnv and similar)
• Available grades: Grade 80 (G80), Grade 70 (G70), Grade 60 (G60)
• Safety: 4:1 safety factor; tested load factor 2.5×
• Surface treatments: natural/self-coloured, black oxide, shot blast, electro-galvanized, powder coated, hot galvanized, painted
• Typical uses: load chain, lifting chain, welded lashing chain, transfer chain

G80 Load Chain Specifications (I)
Size (mm) | Width (b1 Min.) | Width (b2 Max.) | Weight (Kg/M) | Working Load Limit (Ton) | Test Load (kN) | Breaking Load Min (kN)
6 x 18 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2
7 x 21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6
8 x 24 | 10 | 28 | 1.38 | 2 | 48 | 80.4
10 x 30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125
11 x 43 | 12.6 | 36.5 | 2.33 | 3.8 | 92 | 154
12 x 36 | 15 | 42 | 3.1 | 4.6 | 109 | 181
12.5 x 38 | 15.5 | 42.2 | 3.3 | 4.9 | 117 | 196
13 x 39 | 16.3 | 46 | 3.8 | 5 | 128 | 214
14 x 42 | 18 | 49 | 4.13 | 6.3 | 150 | 250
14 x 50 | 17 | 48 | 4 | 6.3 | 150 | 250
15 x 46 | 20 | 52 | 5.17 | 7 | 168 | 280
16 x 48 | 20 | 56 | 5.63 | 8 | 192 | 320
16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320
16 x 64 | 23.9 | 58.9 | 5.11 | 8 | 192 | 320
18 x 54 | 23 | 63 | 6.85 | 10 | 246 | 410
18 x 64 | 21 | 60 | 6.6 | 10 | 246 | 410
19 x 57 | 23.7 | 63.2 | 7.7 | 11.3 | 270 | 450
20 x 60 | 25 | 70 | 8.6 | 12.5 | 300 | 500
22 x 65 | 28 | 74.2 | 10.7 | 15.3 | 366 | 610
22 x 66 | 28 | 77 | 10.2 | 15.3 | 366 | 610
22 x 86 | 26 | 74 | 9.5 | 15.3 | 366 | 610
24 x 72 | 32 | 82 | 12.78 | 18 | 432 | 720
24 x 86 | 28 | 79 | 11.6 | 18 | 432 | 720
26 x 78 | 35 | 91 | 14.87 | 21.3 | 510 | 850
26 x 92 | 30 | 86 | 13.7 | 21.3 | 510 | 850
30 x 90 | 38 | 105 | 19.6 | 28.3 | 678 | 1130
30 x 108 | 34 | 98 | 18 | 28.3 | 678 | 1130
32 x 96 | 40 | 106 | 22.29 | 32.2 | 772 | 1286
34 x 126 | 38 | 109 | 22.7 | 36.3 | 870 | 1450
34 x 102 | 46.5 | 121.5 | 25.5 | 36.3 | 870 | 1450
36 x 108 | 49.5 | 128.5 | 31 | 40.7 | 978 | 1630
38 x 137 | 42 | 121 | 29 | 45.3 | 1086 | 1810
38 x 114 | 52 | 136 | 32 | 45.3 | 1086 | 1810
42 x 126 | 55.5 | 144.5 | 38.6 | 55.4 | 1332 | 2200

G80 Load Chain Specifications (II)
Nominal Diameter (d) | Weld Diameter tolerance | ds max. | t | t max. | t min. | b1 min. | b2 max. | Kg/m | Working Load (Kg) | Proof Load (kN) | Breaking Load (kN) | Deflection bending min.
4 | ±0.16 | 4.4 | 12 | 12.4 | 11.6 | 5.2 | 14.8 | 0.35 | 500 | 12.6 | 20.1 | 3.2
5 | ±0.2 | 5.5 | 15 | 15.5 | 14.6 | 6.5 | 18.5 | 0.5 | 800 | 19.6 | 31.4 | 4
6 | ±0.24 | 6.6 | 18 | 18.5 | 17.5 | 7.8 | 22.2 | 0.8 | 1120 | 28.3 | 45.2 | 4.8
7 | ±0.28 | 7.7 | 21 | 21.6 | 20.4 | 9.1 | 25.9 | 1.1 | 1500 | 38.5 | 61.6 | 5.6
8 | ±0.32 | 8.8 | 24 | 24.7 | 23.3 | 10.4 | 29.6 | 1.4 | 2000 | 50.3 | 80.4 | 6.4
10 | ±0.4 | 11 | 30 | 30.9 | 29.1 | 13 | 37 | 2.2 | 3150 | 78.5 | 126 | 8
13 | ±0.52 | 14.3 | 39 | 40.2 | 37.8 | 16.9 | 48.1 | 3.8 | 5300 | 133 | 212 | 10
16 | ±0.64 | 17.6 | 48 | 49.4 | 46.6 | 20.8 | 59.2 | 5.7 | 8000 | 201 | 322 | 13
18 | ±0.9 | 19.8 | 54 | 55.6 | 52.4 | 23.4 | 66.6 | 7.3 | 10000 | 254 | 407 | 14
19 | ±1 | 20.9 | 57 | 58.7 | 55.3 | 24.7 | 70.3 | 8.1 | 11200 | 284 | 454 | 15
20 | ±1 | 22 | 60 | 61.8 | 58.2 | 26 | 74 | 9 | 12500 | 314 | 503 | 16
22 | ±1.1 | 24.2 | 66 | 68 | 64 | 28.6 | 81.4 | 10.9 | 15000 | 380 | 608 | 18
23 | ±1.2 | 25.3 | 69 | 71.1 | 66.9 | 29.9 | 85.1 | 12 | 16000 | 415 | 665 | 18
25 | ±1.3 | 27.5 | 75 | 77.3 | 72.8 | 32.5 | 92.5 | 14.1 | 20000 | 491 | 785 | 20
26 | ±1.3 | 28.6 | 78 | 80.3 | 75.7 | 33.8 | 96.2 | 15.2 | 21200 | 531 | 849 | 21

Standards & Packaging

• Standard: Grade 80 Alloy Chain EN818-1 and EN818-2
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical characteristics / specifications

• Product name: Grade 80 lifting chain
• Material: Alloy steel (examples: 20Mn2, 20Mnv)
• Available grades: G80, G70, G60
• Safety factor: 4:1 FoS; tested load factor 2.5×
• Surface finishes: self-coloured, black oxide, shot blast, electro-galvanized, powder coated, hot galvanized, painted
• Standards: ISO3077, EN818, AS2321, EN818-1, EN818-2
• Typical applications: lifting, hoist chains, crane and industrial operations
• MOQ and packaging: minimum 100 meters; shipped in carton and on steel pallet
