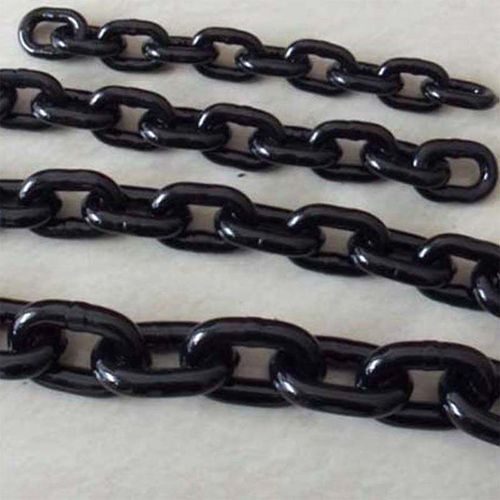

Coated lifting chain ASTM Grade 80

steelgalvanised steelsteel alloy

Product Overview
Grade 80 lifting chain is manufactured from high‑quality alloy steel and is intended for overhead lifting applications. The standard finish is a black armour coat; other finishes are available including electro galvanized, powder coated, hot‑dipped galvanized and Silver Shield.

Features and Benefits

• Manufactured from high‑quality alloy steel for consistent mechanical properties
• Special induction heat treatment to maximize strength and improve elongation characteristics
• Standard black armour coat finish with alternative finish options on request
• Meets or exceeds NACM & ASTM standards for Grade 80 chain
• Approved and rated for overhead lifting when used according to applicable standards

Parameters

• Grade of Chain: NACM (National Association of Chain Manufacturers) & ASTM classify chains by grade. Higher grade indicates higher working load limit for the same chain size.
• Working Load Limit (WLL): The maximum working load that should be applied in direct tension to an undamaged straight length of chain.
• Proof Test: The minimum tensile force applied during manufacturing as a quality test. Proof test values are manufacturing integrity checks and not design criteria for service.
• Minimum Breaking Force: The minimum tensile force at which the chain sample broke during testing. Breaking force is an acceptance test result and shall not be used as a service design value.
• Overhead Lifting: Lifting that elevates a freely suspended load to a position where dropping the load could cause injury or property damage.

Chain Size Table (values per row)
Chain Size Inch | Chain Size MM | Working Load Limit (lbs) | Weight Per Foot (lbs) | Material Size Inch | Inside Length Inch | Inside Length MM | Inside Width Inch | Inside Width MM
9/32" | 7 | 3,500 | 0.72 | 0.28" | 0.88" | 22 | 0.41" | 10
5/16" | 8 | 4,500 | 1.06 | 0.33" | 1.02" | 26 | 0.48" | 12
3/8" | 10 | 7,100 | 1.50 | 0.40" | 1.22" | 31 | 0.57" | 14
1/2" | 13 | 12,000 | 2.61 | 0.52" | 1.56" | 40 | 0.75" | 20
5/8" | 16 | 18,100 | 3.61 | 0.63" | 1.93" | 19 | 0.92" | 23
3/4" | 20 | 28,300 | 6.21 | 0.79" | 2.36" | 60 | 1.02" | 26
7/8" | 22 | 34,162 | 7.17 | 0.87" | 2.60" | 66 | 1.14" | 29
1" | 26 | 47,606 | 10.4 | 1.02" | 3.07" | 78 | 1.34" | 34
1-1/4" | 32 | 72,300 | 15.5 | 1.25" | 3.50" | 89 | 1.75" | 44

Standards

• Name: ASTM Grade 80 Chain
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical specifications

• Product: ASTM Grade 80 Chain
• Material: High quality alloy steel
• Heat treatment: Special induction heat treatment to maximize strength and elongation characteristics
• Typical finish: Black armour coat
• Other finishes available: Electro Galvanized; Powder Coated; Hot Dipped Galvanized; Silver Shield
• Standards: Meets or exceeds NACM & ASTM requirements
• Approved for: Overhead lifting
• MOQ: 100 Meters
• Package: Carton + Steel Pallet
• Detailed chain sizes, WLL and weights provided in the Chain Size Table above
