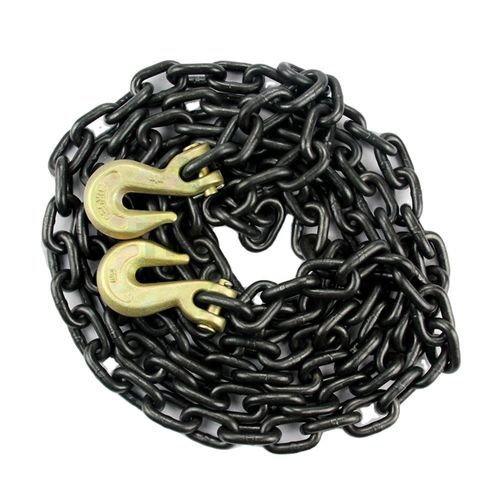

Chain sling Grade 80 SOF1-point
Add to favorites
Compare this product
Characteristics
- Type
- chain, 1-point
- Load capacity
Max.: 187,800 lb
(85,184.6 kg)Min.: 2,100 lb
(952.5 kg)
Description
Introduction
The chain sling is supplied with a written certification. The serial number on the tag corresponds to the certificate and your sales order number, ensuring full traceability.
Key features
Parameters (Chain Diameter and Working Loads)
Chain Diameter | 90 Degrees | 60 Degrees | 45 Degrees | 30 Degrees | 60 Degrees (2-Leg) | 45 Degrees (2-Leg) | 30 Degrees (2-Leg)
7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500
Standards
Name: Grade 80 SOF Chain Sling – Single Leg with Oblong Master Link on Top and Foundry Hook on Bottom
MOQ: 100 Meters
Package: Carton + Steel Pallet
Technical specifications
The chain sling is supplied with a written certification. The serial number on the tag corresponds to the certificate and your sales order number, ensuring full traceability.
Key features
- Sling style: Single leg
- Individualized serial number on tag
- Chain grade: Grade 80 (G80)
- Available chain diameters: 7/32"–1-1/4"
- Working Load Limit provided per diameter and configuration
- Top fitting: Oblong master link; Bottom fitting: Foundry hook
Parameters (Chain Diameter and Working Loads)
Chain Diameter | 90 Degrees | 60 Degrees | 45 Degrees | 30 Degrees | 60 Degrees (2-Leg) | 45 Degrees (2-Leg) | 30 Degrees (2-Leg)
7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500
Standards
Name: Grade 80 SOF Chain Sling – Single Leg with Oblong Master Link on Top and Foundry Hook on Bottom
MOQ: 100 Meters
Package: Carton + Steel Pallet
Technical specifications
- Commercial name: Grade 80 SOF Chain Sling – Single Leg with Oblong Master Link on Top and Foundry Hook on Bottom
- Sling style: Single leg
- Certification: Written certification provided; serial number on tag coordinated with certificate for traceability
- Chain grade: Grade 80 (G80)
- Available chain diameters and corresponding working loads listed in the parameters section (7/32" up to 1-1/4")
- Design note: Working loads shown for single-leg and multi-leg configurations
- MOQ: 100 meters
- Packaging: Carton + Steel Pallet
