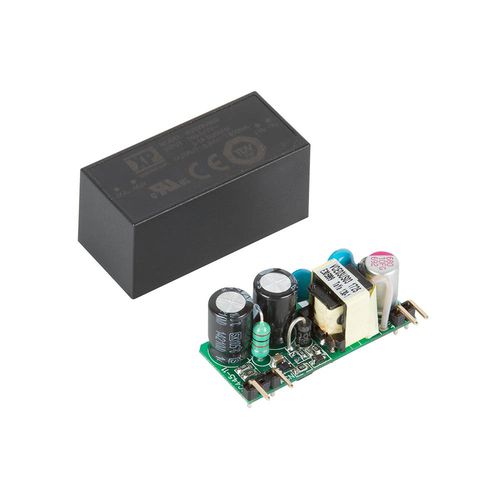

Printed circuit board power supply VCE03 series

encapsulatedopen frameAC/DC

The VCE03 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE and industrial electronics applications. Their compact design features an integral EMC filter and hold-up capacitor, so no external components are required. The series provides two mechanical options including open frame and encapsulated SIL PCB mount. With approvals to world-wide safety standards, compliance with class B for conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into a wide range of applications. FEATURES PCB mount SIL package ITE & household appliance approvals Class II operation Low Cost -25°C to +70°C operating temperature 3 Year Warranty
